Types of parameter changes

Parameter changes that match how models are actually calibrated

Inspired by the community of the SWAT and SWAT+ hydrological models, since v.6-0 hydroPSO allows making parameter updates in three different ways, both for R-based and R-external models:

• replacement,
• additive change, and
• multiplicative change.

Note: These changes were also possible since v0.5-0, but only for R-external models.

The new change.type vocabulary makes this explicit and consistent across the two main hydroPSO workflows: models implemented directly in R (R-based models) and models run through external executable and input files (R-external models).

Importantly, change.type can be a single value applied to all parameters, or a vector with one entry per parameter.

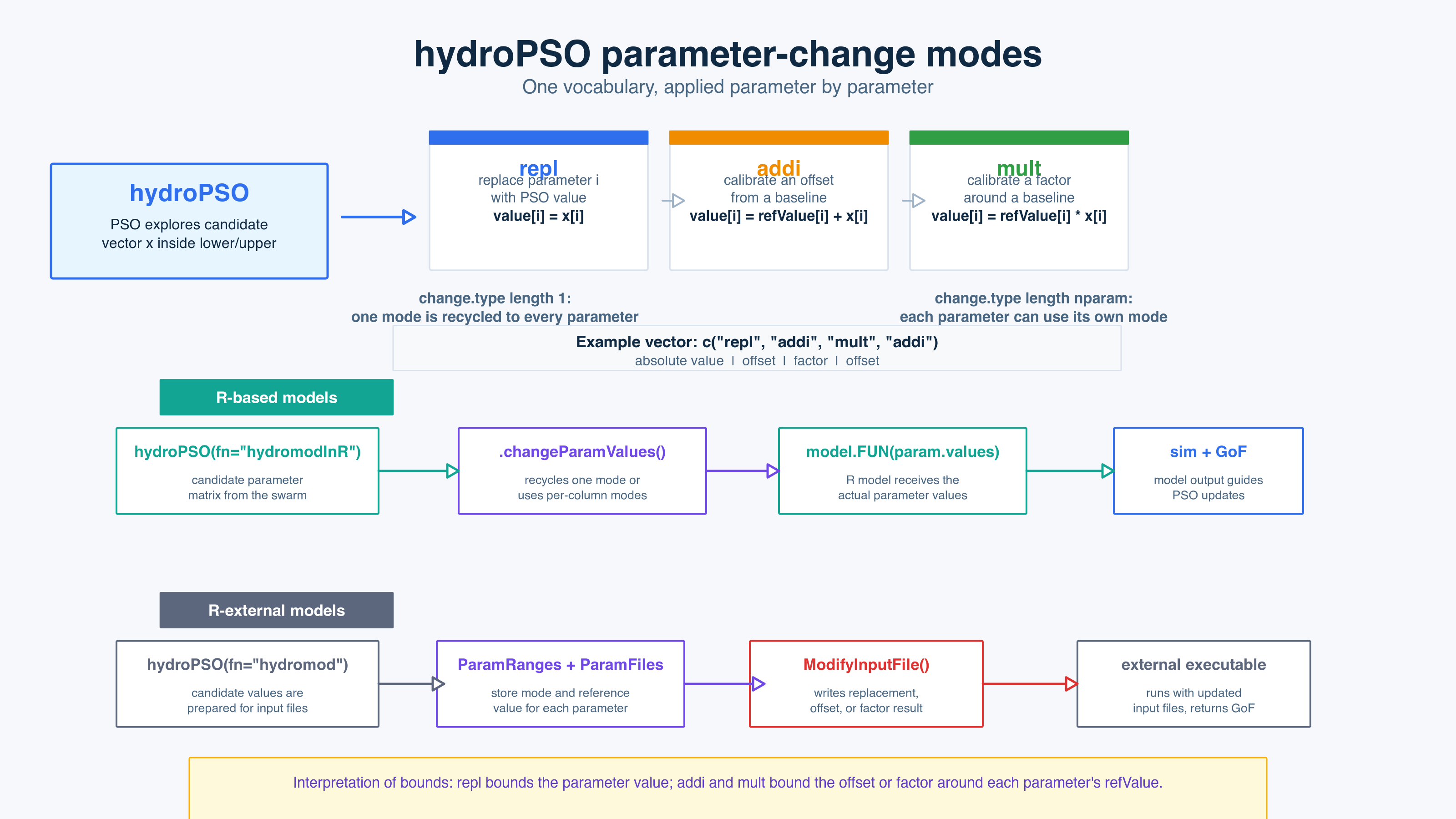

Three parameter-change modes in hydroPSO

Why this matters

Hydrological and environmental models are not always calibrated by replacing a parameter with an absolute value. In many operational workflows, a parameter is adjusted relative to a trusted baseline, a regional estimate, a previous calibration, or a value already written in a model input file.

The new parameter-change modes in hydroPSO >= v0.6-0 allow that modelling intent to be represented directly in the optimisation setup.

The three modes are applied parameter by parameter:

change.type value	Meaning	Parameter value passed to the model
"repl"	Replacement. The model parameter value is directly replaced by the PSO value.	value[i] = x[i]
"addi"	Additive change. The model parameter value is obtained by adding or substracting the PSO value from a reference value defined by the new argument refValue.	value[i] = refValue[i] + x[i]
"mult"	Multiplicative change. The model parameter value is obtained by scaling the PSO value from a reference value defined by the new argument refValue.	value[i] = refValue[i] * x[i]

The default is change.type = "repl", so already existing hydroPSO scripts will continue to behave as before. When change.type has length one, hydroPSO recycles it to all parameters. When it has one value per parameter, each parameter can use its own change rule.

R-based models

For models implemented as R functions, use fn = "hydromodInR" and select the transformation in the hydroPSO() call, which can be set up as the same change for all parameters or a different change for each model parameter.

1. A scalar change.type applies the same change type to every model parameter:

out <- hydroPSO(
  fn = "hydromodInR",
  lower = c(0.8, 0.8, 0.8),
  upper = c(1.2, 1.2, 1.2),
  change.type = "mult",
  refValue = c(120, 4.5, 0.35),
  model.FUN = "my_hydrological_model",
  model.FUN.args = list(obs = Qobs)
)

In the previous example, hydroPSO searches for multiplicative factors between 0.8 and 1.2. The R model receives the transformed parameter values, not the raw factors.

2. Mixed types of parameter changes can be specified by using individual values for the change.type argument:

out <- hydroPSO(
  fn = "hydromodInR",
  lower = c(20, -2, 0.5, -5),
  upper = c(400, 2, 1.5, 5),
  change.type = c("repl", "addi", "mult", "addi"),
  refValue = c(NA, 4.5, 0.35, 12),
  model.FUN = "my_hydrological_model",
  model.FUN.args = list(obs = Qobs)
)

Here the first parameter is calibrated as an absolute replacement value, the second and fourth are calibrated as additive deviations, and the third is calibrated as a multiplicative factor. The same arguments can be used in the verification() function, to replay behavioural parameter sets with the same interpretation:

ver <- verification(
  fn = "hydromodInR",
  par = behavioural_params,
  change.type = c("repl", "addi", "mult", "addi"),
  refValue = c(NA, 4.5, 0.35, 12),
  model.FUN = "my_hydrological_model",
  model.FUN.args = list(obs = Qobs.ver)
)

R-external models

For executable or command-line models, the same three types of parameter changes can be applied when hydroPSO writes new values into model input files. The R-external model workflow remains:

1. hydroPSO proposes a candidate value during optimisation.
2. ParameterValues2InputFiles() reads the parameter metadata.
3. ModifyInputFile() computes the actual value using repl, addi, or mult.
4. The modified input files are used to run the external model.

This is useful when the model input file already contains a meaningful baseline value. Instead of replacing it, hydroPSO can optimise an offset or a multiplier while preserving the file-based workflow used by legacy or compiled models.

Practical interpretation of bounds

With replacement, lower and upper are the physical parameter bounds for that parameter. With additive or multiplicative changes, they define the search range of the change itself:

• additive: lower = -10, upper = 10 searches for changes from refValue - 10 to refValue + 10.

• multiplicative: lower = 0.5, upper = 2 searches for values from half to twice refValue

This makes the calibration setup easier to read: the bounds describe what hydroPSO explores for each parameter, while refValue describes the baseline being modified.

Take-home message

The new change.type feature lets hydroPSO >= 0.6-0 calibrate absolute values, deviations, and scale factors in the same parameter set. R-based models and R-external models now share the same conceptual language, making calibration workflows clearer, more reproducible, and easier to transfer between research prototypes and production model setups.
