Reading/Plotting the 'Particles.txt' output file

The function read_particles reads the ‘Particles.txt’ output file, which stores all the parameter sets tested during the optimisation along with their corresponding goodness-of-fit values

The function plot_particles takes the parameter sets and their corresponding goodness-of-fit value, read by read_particles, and produces the following plots:

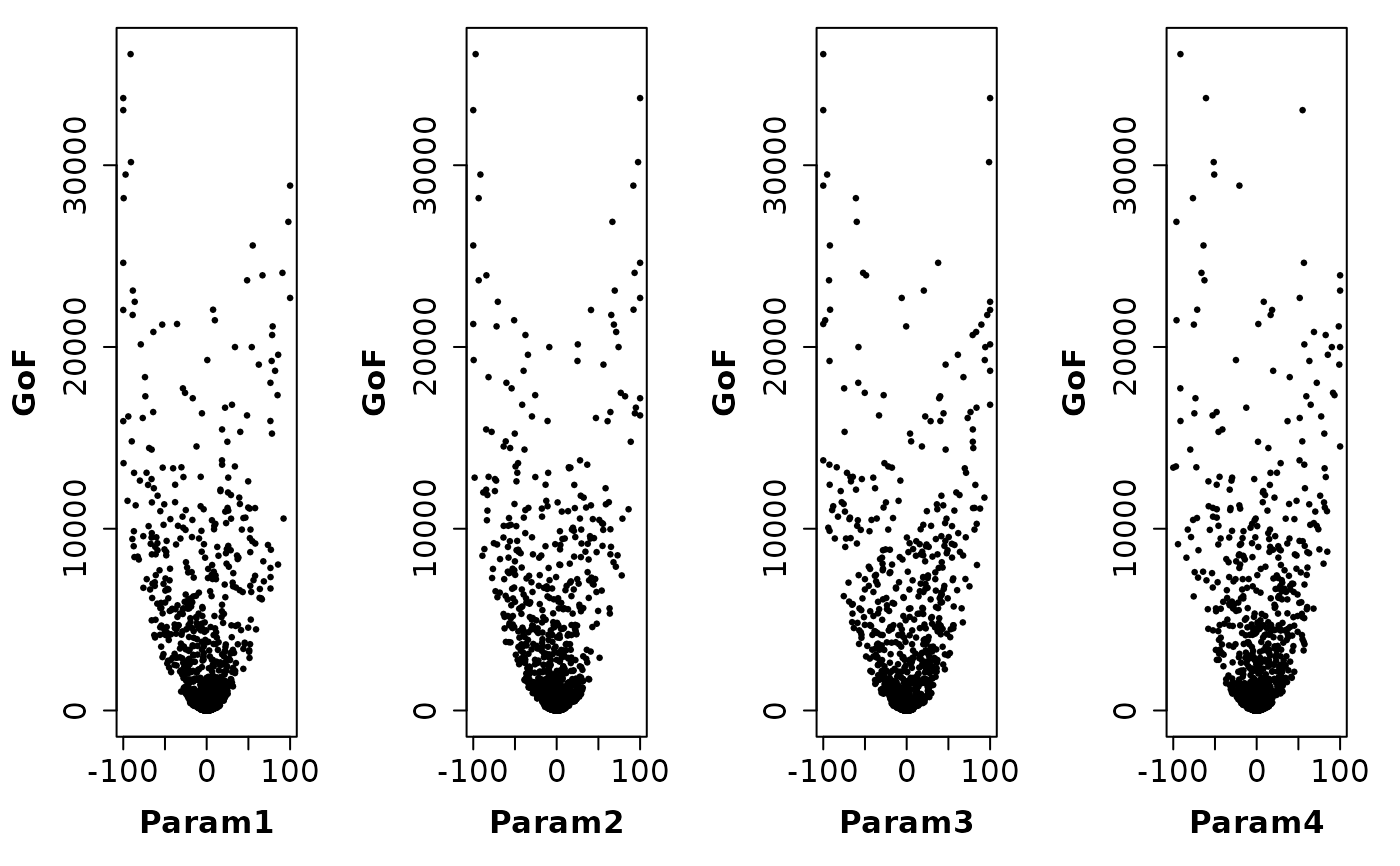

1) Dotty plots
2) Histograms
3) Boxplots
4) Correlation matrix (optional)
5) Empirical CDFs
6) Parameter values vs Number of Model Evaluations
7) (pseudo) 3D dotty plots

Usage

read_particles(file="Particles.txt", verbose=TRUE, plot=TRUE,
     gof.name="GoF", MinMax=NULL, beh.thr=NA, beh.col="red", beh.lty=1,
     beh.lwd=2, nrows="auto", col="black", ylab=gof.name, main=NULL,
     pch=19, cex=0.5, cex.main=1.5, cex.axis=1.5, cex.lab=1.5,
     <!-- %%..., -->
     breaks="Scott", freq=TRUE, do.pairs=FALSE,
     dp3D.names="auto", GOFcuts="auto",
     colorRamp= colorRampPalette(c("darkred", "red", "orange", "yellow",
     "green", "darkgreen", "cyan")), alpha=1, points.cex=0.7,
     legend.pos="topleft", do.png = FALSE, png.res = 90,
     png.width = 1500, png.height = 900,
     params.png.width=1500, params.png.height=900,
     dotty.png.fname="Params_DottyPlots.png",
     hist.png.fname="Params_Histograms.png",
     bxp.png.fname="Params_Boxplots.png",
     ecdf.png.fname="Params_ECDFs.png",
     runs.png.fname="Params_ValuesPerRun.png",
     dp3d.png.fname="Params_dp3d.png",
     pairs.png.fname="Params_Pairs.png")

plot_particles(params, gofs, gof.name="GoF", MinMax=NULL, beh.thr=NA,
     beh.col="red", beh.lty=1, beh.lwd=2, nrows="auto", col="black",
     ylab=gof.name, main=NULL, pch=19, cex=0.5, cex.main=1.5,
     cex.axis=1.5, cex.lab=1.5,
     <!-- %%...,  -->
     breaks="Scott", freq=TRUE, do.pairs=FALSE,
     weights=NULL, byrow=FALSE, leg.cex=1.5,
     dp3D.names="auto", GOFcuts="auto",
     colorRamp= colorRampPalette(c("darkred", "red", "orange", "yellow",
     "green", "darkgreen", "cyan")), alpha=1, points.cex=0.7,
     legend.pos="topleft", verbose=TRUE,
     do.png = FALSE, png.res = 90, png.width = 1500, png.height = 900,
     params.png.width=1500, params.png.height=900,
     dotty.png.fname="Params_DottyPlots.png",
     hist.png.fname="Params_Histograms.png",
     bxp.png.fname="Params_Boxplots.png",
     ecdf.png.fname="Params_ECDFs.png",
     runs.png.fname="Params_ValuesPerRun.png",
     dp3d.png.fname="Params_dp3d.png",
     pairs.png.fname="Params_Pairs.png")

read_velocities(file="Velocities.txt", ... )

Arguments

file

character, name (including path) of the output file with the position and fitness value of each particle and for each iteration

params

data.frame whose rows represent the values of different parameter sets

gofs

OPTIONAL. numeric with the values of goodness-of-fit values for each parameter in params (in the same order!)

verbose

logical, if TRUE, progress messages are printed

plot

logical, indicates if the following figures has to be produced: dotty plots, histograms, empirical CDFs, Parameter Values Against Number of Model Evaluations, and 3D dotty plots of Parameter Values

gof.name

character, name to be given to the goodness-of-fit values in all the plots

MinMax

OPTIONAL. character, indicates if the optimum value in params corresponds to the minimum or maximum of the the objective function. Only used to identify the optimum in the plot
Valid values are in: c('min', 'max')

beh.thr

numeric, used for selecting only the behavioural parameter sets, i.e. those with a goodness-of-fit value greater/less than or equal to beh.thr, depending on the value of MinMax
By default beh.thr=NA and all the parameter sets are considered for the subsequent anlysis

beh.col

OPTIONAL. Only used when plot=TRUE
character, colour for drawing a horizontal line for separating behavioural from non behavioural parameter sets

beh.lty

OPTIONAL. Only used when plot=TRUE
numeric, line type for drawing a horizontal line for separating behavioural from non behavioural parameter sets

beh.lwd

OPTIONAL. Only used when plot=TRUE
numeric, width for drawing a horizontal line for separating behavioural from non behavioural parameter sets

nrows

OPTIONAL. Only used when plot=TRUE
numeric, number of rows to be used in the plotting window
If nrowsis set to auto, the number of rows is automatically computed depending on the number of columns of params

col

OPTIONAL. Only used when plot=TRUE
character, colour for drawing the points of the dotty plots

ylab

OPTIONAL. Only used when plot=TRUE
character, label for the 'y' axis

main

OPTIONAL. Only used when plot=TRUE
character, title for the plot

pch

OPTIONAL. Only used when plot=TRUE
numeric, type of symbol to be used for drawing the points of the dotty plots (e.g., 1: white circle)

cex

OPTIONAL. Only used when plot=TRUE
numeric, values controlling the size of text and points with respect to the default

cex.main

OPTIONAL. Only used when plot=TRUE
numeric, magnification for main titles relative to the current setting of cex

cex.axis

OPTIONAL. Only used when plot=TRUE
numeric, magnification for axis annotation relative to the current setting of cex

cex.lab

OPTIONAL. Only used when plot=TRUE
numeric, magnification for x and y labels relative to the current setting of cex

...

OPTIONAL. Only used when plot=TRUE
further arguments passed to the plot command or from other methods

breaks

OPTIONAL. Only used when plot=TRUE
breaks for plotting the histograms of the parameter sets. See hist

freq

OPTIONAL. Only used when plot=TRUE
logical, if TRUE, the histogram graphic is a representation of frequencies, the counts component of the result; if FALSE, probability densities, component density, are plotted (so that the histogram has a total area of one). Defaults to TRUE if and only if breaks are equidistant (and probability is not specified). See hist

do.pairs

OPTIONAL. Only used when plot=TRUE
logical, indicates whether a correlation matrix among parameters has to be plotted. If the number of parameter sets tried during the optimisation is large, it may require some time.

weights

OPTIONAL. Only used when plot=TRUE
numeric vector, values of the weights to be used for computing the empirical CDFs. See params2ecdf

byrow

OPTIONAL. Only used when plot=TRUE
logical, indicates whether the computations have to be made for each column or for each row of params. See params2ecdf

leg.cex

OPTIONAL. Only used when plot=TRUE
character expansion factor *relative* to current 'par("cex")'. Used for text, and provides the default for 'pt.cex' and 'title.cex'. Default value = 1.2

dp3D.names

character, name of all the parameters (usually only the most sensitive ones) that will be used for plotting pseudo-3D plots
If dp3D.names='auto' half the number of parameters in file are chosen randomly for plotting. See plot_NparOF

GOFcuts

numeric, specifies at which values of the objective function gof.name the colours of the plot have to change. See plot_NparOF

colorRamp

R function defining the colour ramp to be used for colouring the pseudo-3D dotty plots of Parameter Values, OR character representing those colours. See plot_NparOF

alpha

numeric between 0 and 1 representing the transparency level to apply to the colors of the pseudo-3D dotty plots. See plot_NparOF

points.cex

size of the points to be plotted

legend.pos

not used yet ...


Logical value indicating whether the plots created with this function should be saved as PNG files instead of being drawn only on the active graphics device.

png.res

Resolution of all the output PNG figures, in pixels per inch.

png.width

Width of the output PNG figures, in pixels. Only for used for the following figures:

-) ‘Params_ValuesPerRun.png’ -) ‘Params_dp3d.png’ -) ‘Particles_GofPerIter.png’ -) ‘Velocities_ValuePerRun.png’ -) ‘ModelOut_BestSim_vs_Obs.png’ -) ‘ModelOut_Quantiles.png’ -) ‘ConvergenceMeasures.png’

png.height

Height of the output PNG figures, in pixels. Only for used for the following figures:

params.png.width

Width of the output PNG figures, in pixels. Only for used for the following figures:

-) ‘Params_DottyPlots.png’ -) ‘Params_Histograms.png’ -) ‘Params_Boxplots.png’ -) ‘Params_ECDFs.png’ -) ‘Params_Pairs.png’

params.png.height

Height of the output PNG figures, in pixels. Only for used for the following figures:

-) ‘Params_DottyPlots.png’ -) ‘Params_Histograms.png’ -) ‘Params_Boxplots.png’ -) ‘Params_ECDFs.png’ -) ‘Params_Pairs.png’

dotty.png.fname

OPTIONAL. Only used when do.png=TRUE
character, filename used to store the PNG file with the dotty plots of the parameter values

hist.png.fname

OPTIONAL. Only used when do.png=TRUE
character, filename used to store the PNG file with the histograms of the parameter values

bxp.png.fname

OPTIONAL. Only used when do.png=TRUE
character, filename used to store the PNG file with the boxplots of the parameter values

ecdf.png.fname

OPTIONAL. Only used when do.png=TRUE
character, filename used to store the PNG file with the empirical CDFs of the parameter values

runs.png.fname

OPTIONAL. Only used when do.png=TRUE
character, filename used to store the PNG file with the parameter values vs the number of model evaluations

dp3d.png.fname

OPTIONAL. Only used when do.png=TRUE
character, filename used to store the PNG file with the pseudo-3D plots of all the parameters defined in dp3D.names

pairs.png.fname

OPTIONAL. Only used when do.png=TRUE
character, filename used to store the PNG file with the correlation matrix among the parameters and goodness-of-fit values in params and gofs. See plot_params and hydropairs

Value

read_particles returns a list with four elements:

part.params: numeric or matrix/data.frame with the parameter values for each particle and iteration

part.gofs: numeric vector with the goodness-of-fit value for each particle and iteration

best.param: numeric with the parameter values of the best particle. In order to be computed, the user has to provide a valid value for MinMax

best.gof: numeric with the best godness-of-fit value among all the particles. In order to be computed, the user has to provide a valid value for MinMax

Author

Mauricio Zambrano-Bigiarini, mzb.devel@gmail.com

Examples

# \donttest{
local({

# Setting the user temporal directory as working directory
oldwd <- getwd()
on.exit(setwd(oldwd), add = TRUE)
setwd(tempdir())

# Number of dimensions to be optimised
D <- 4

# Boundaries of the search space (Sphere test function)
lower <- rep(-100, D)
upper <- rep(100, D)

# Setting the seed
set.seed(100)

# Runing PSO with the 'Sphere' test function, writting the results to text files
hydroPSO(fn=sphere, lower=lower, upper=upper,
         control=list(maxit=100, write2disk=TRUE, plot=TRUE)  )

# reading the 'Particles.txt' output file of hydroPSO, and plotting dotty plots,
# histograms, eCDFs, ...
particles <- read_particles(file="./PSO.out/Particles.txt")

# reading only the particles in 'Particles.txt' with a goodness-of-fit value
# lower than 'beh.thr'
particles <- read_particles(file="./PSO.out/Particles.txt", beh.thr=1000, MinMax="min")

}) # local END
#>
#> ================================================================================

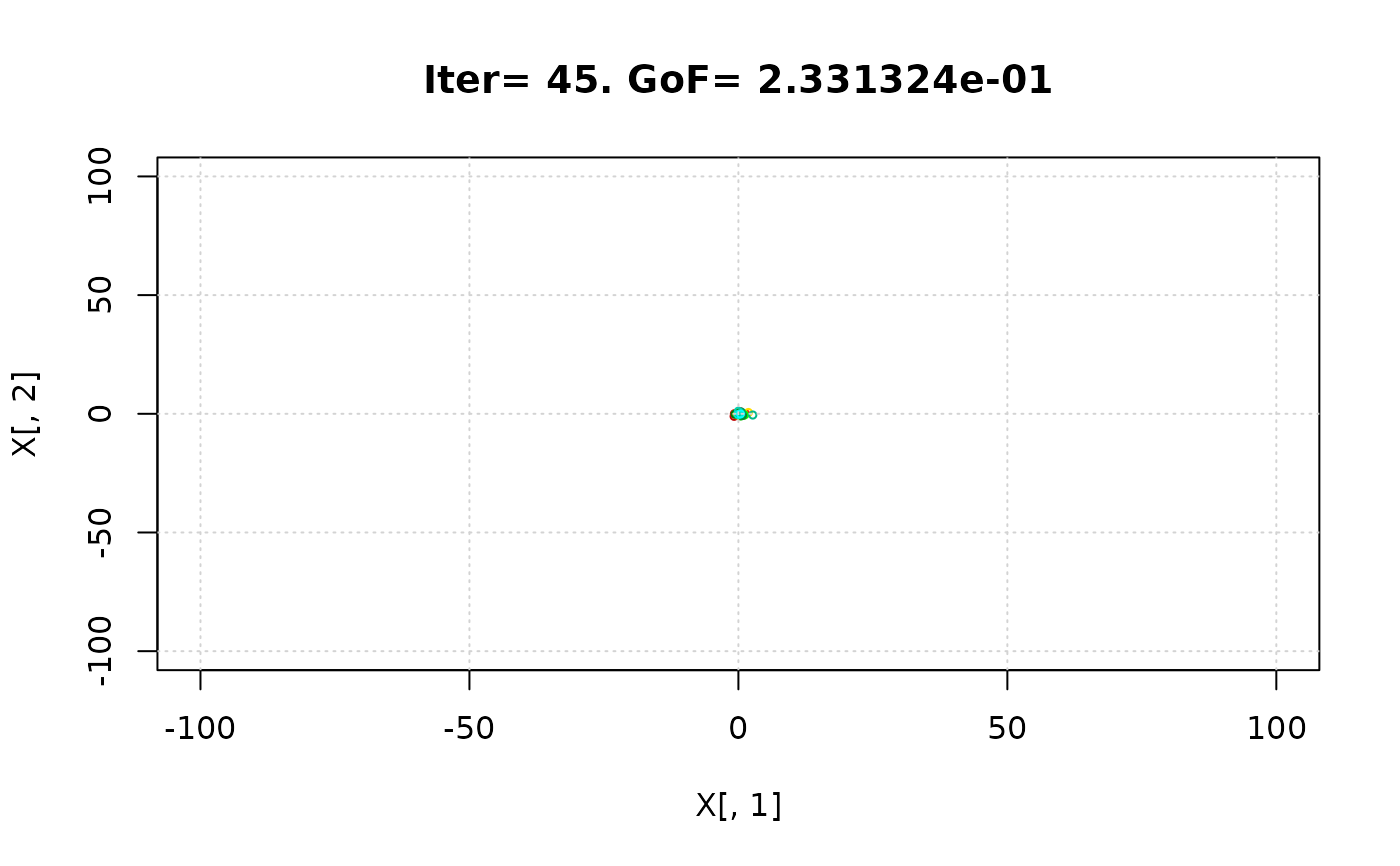

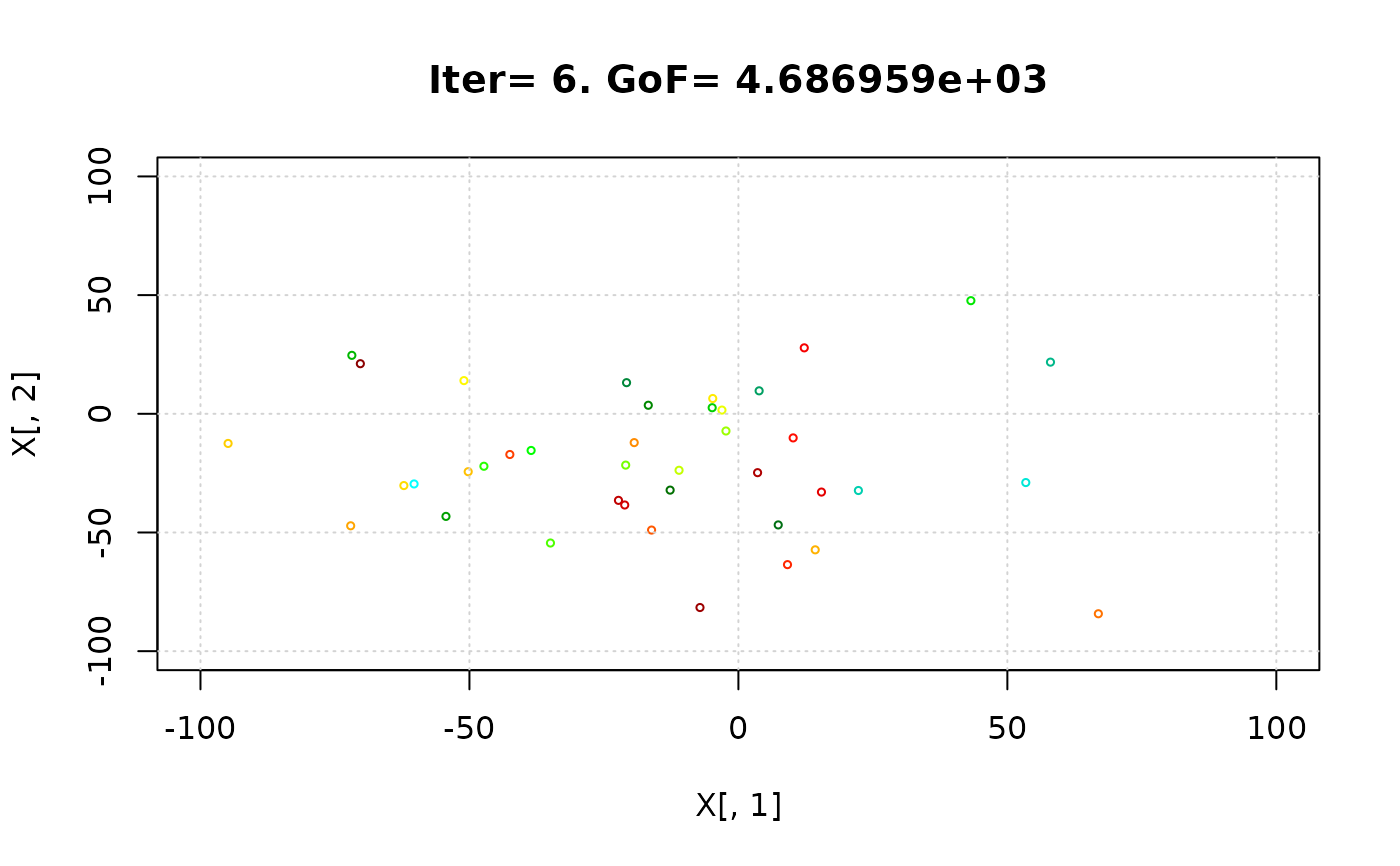

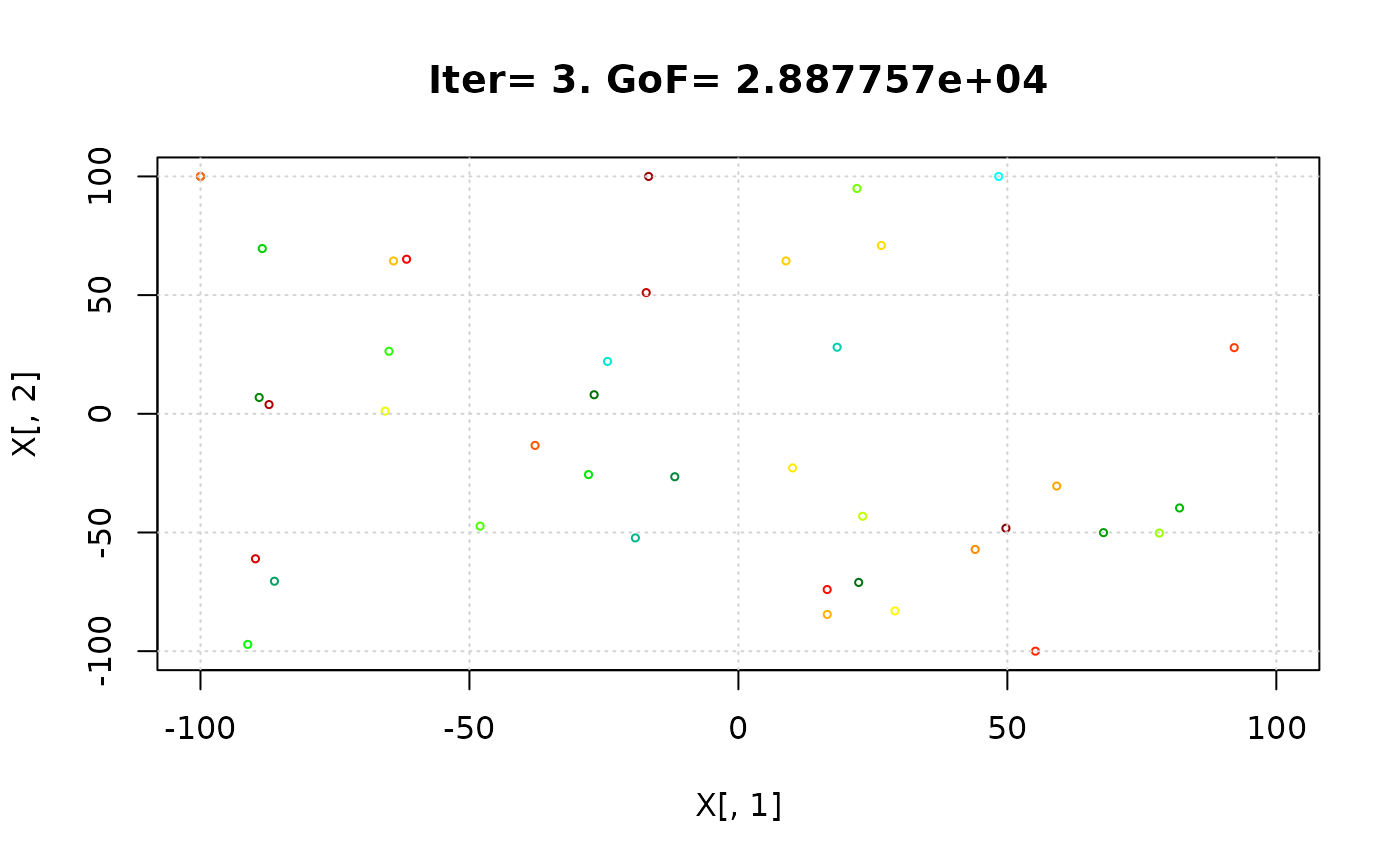

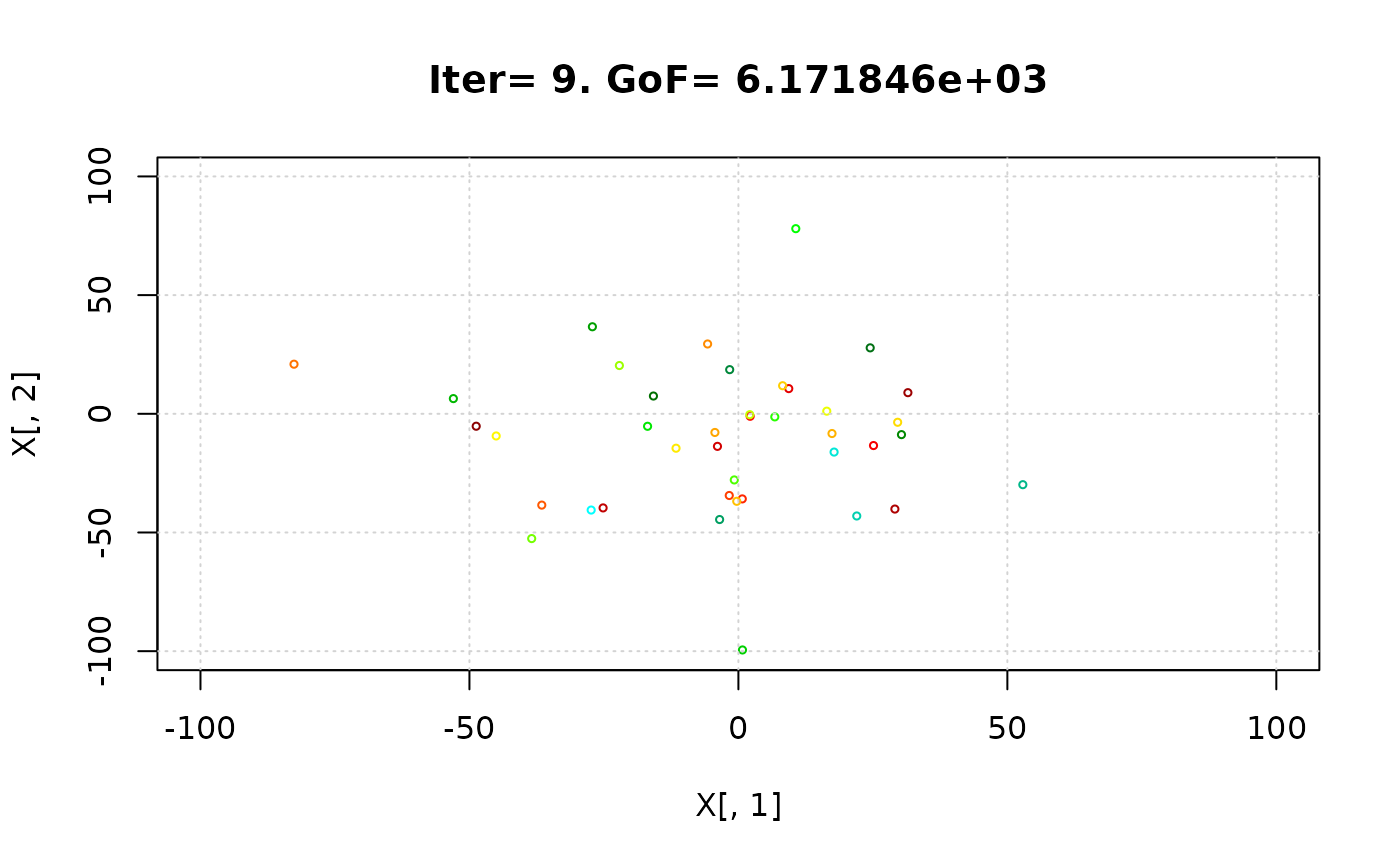

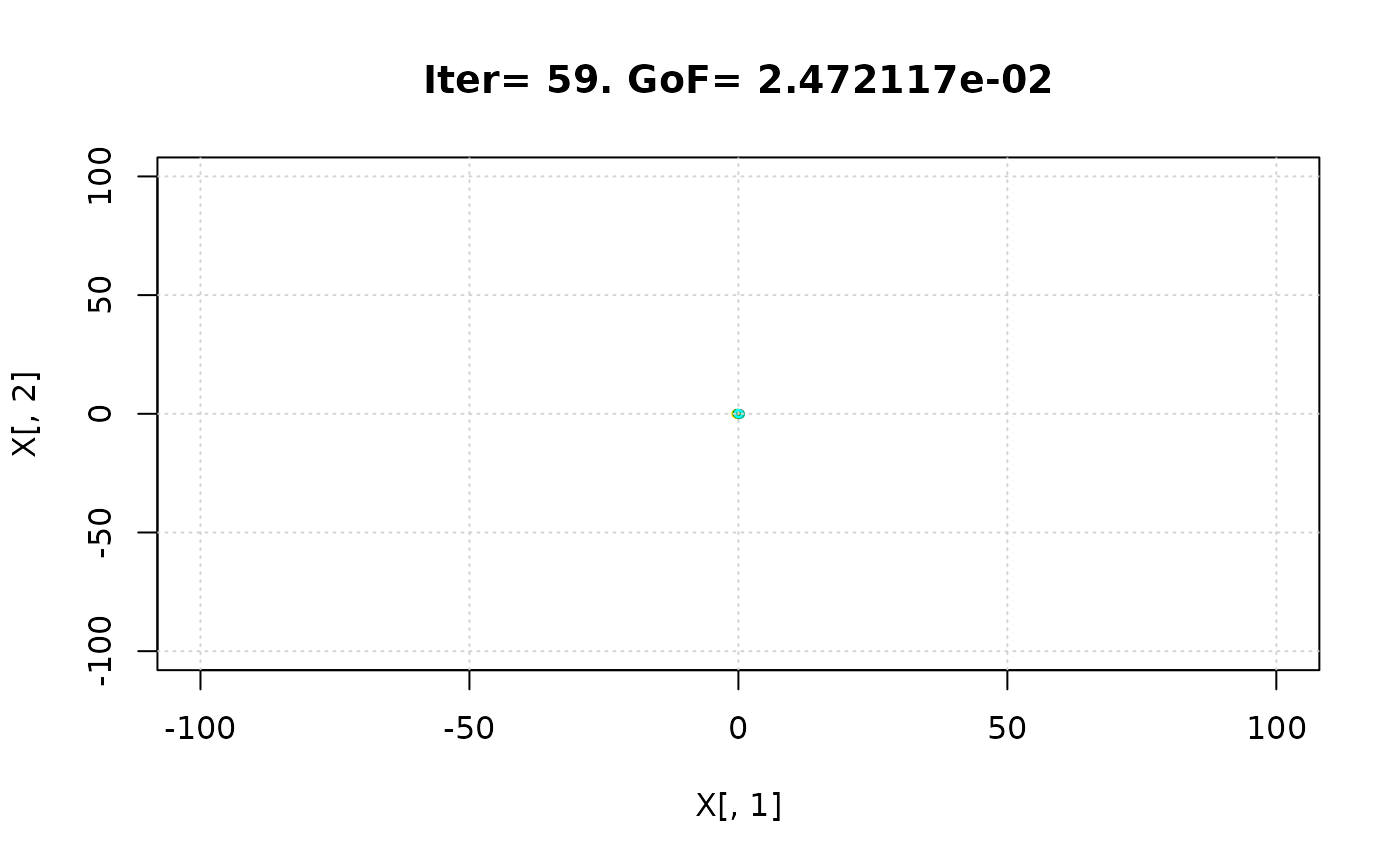

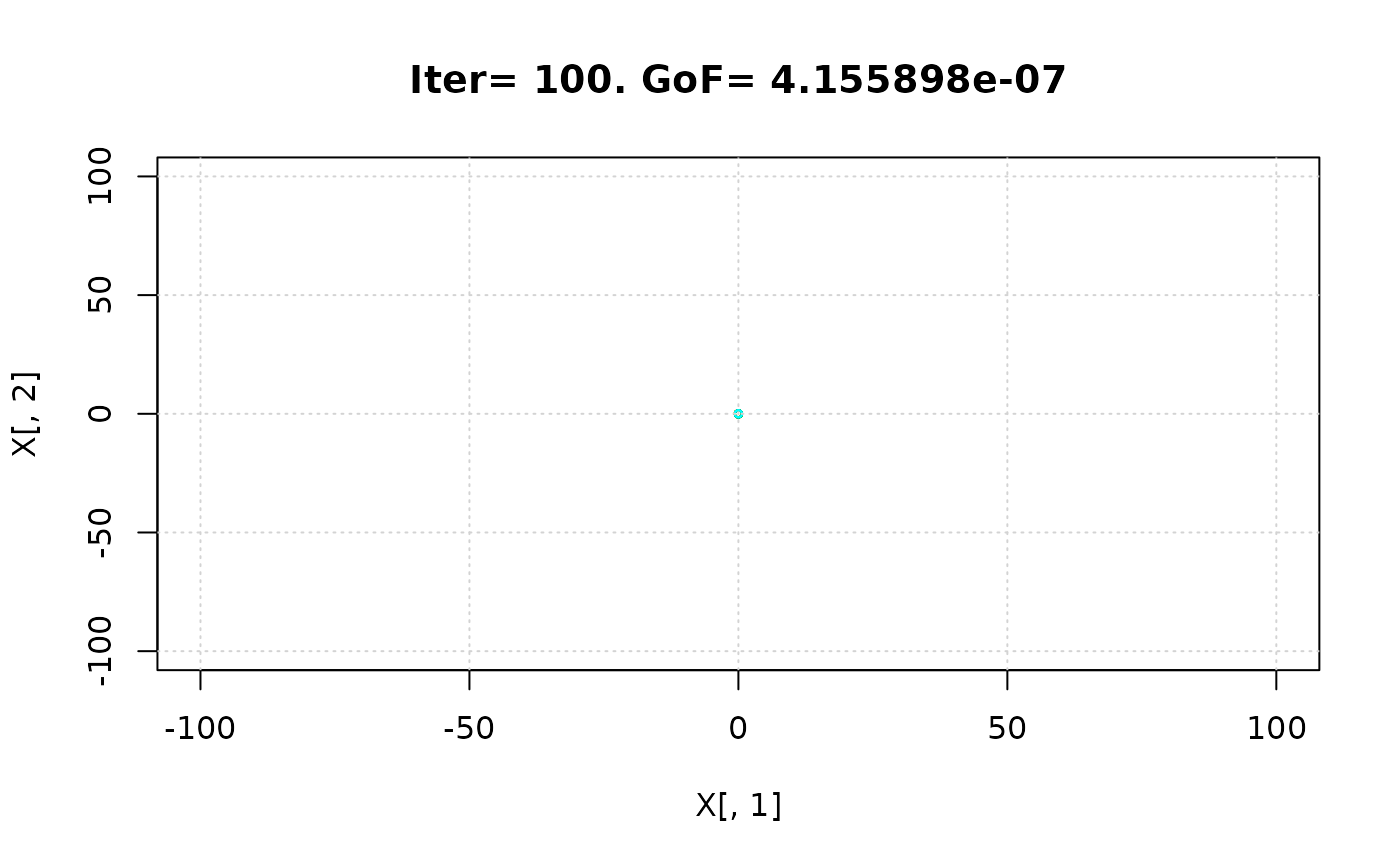

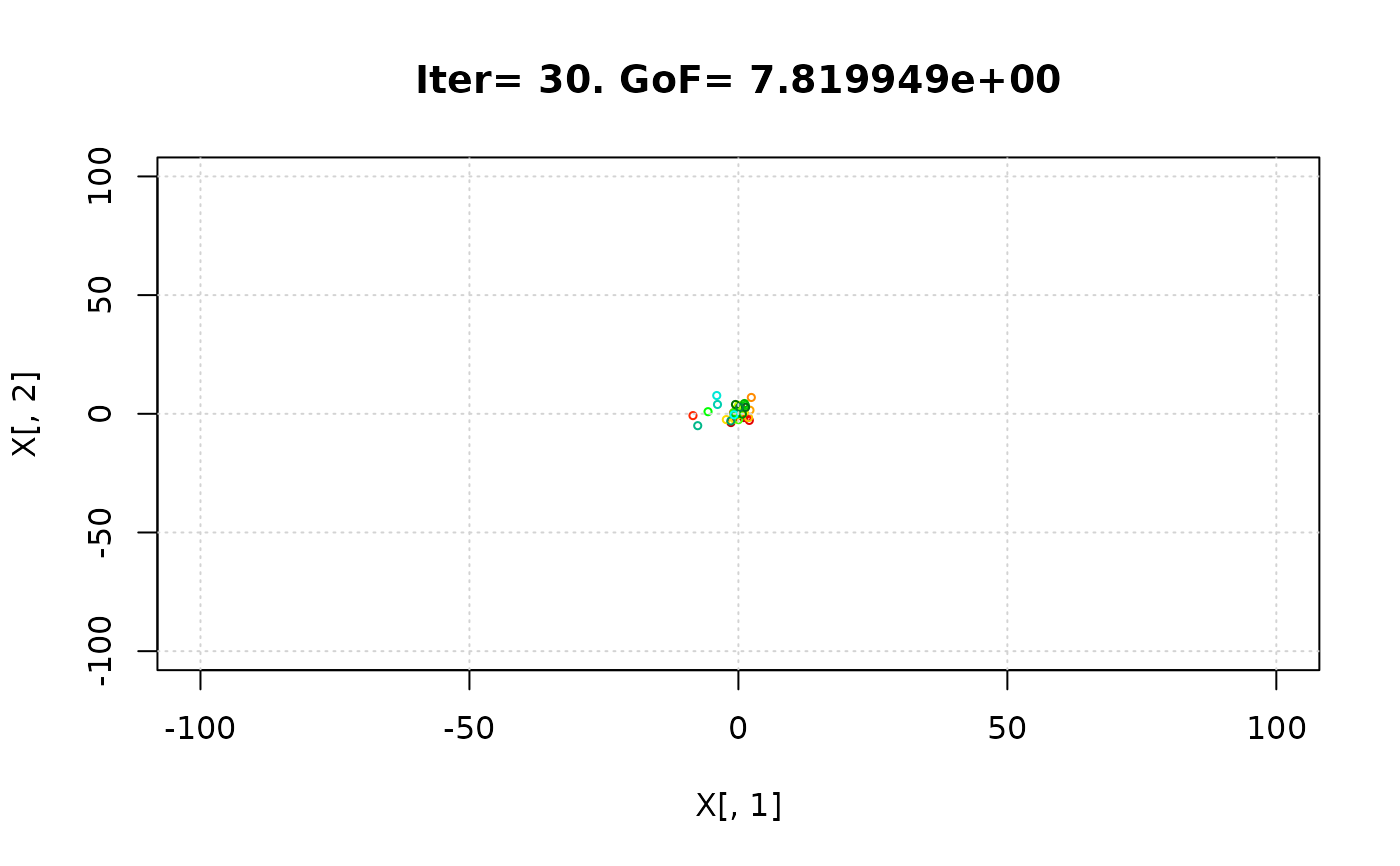

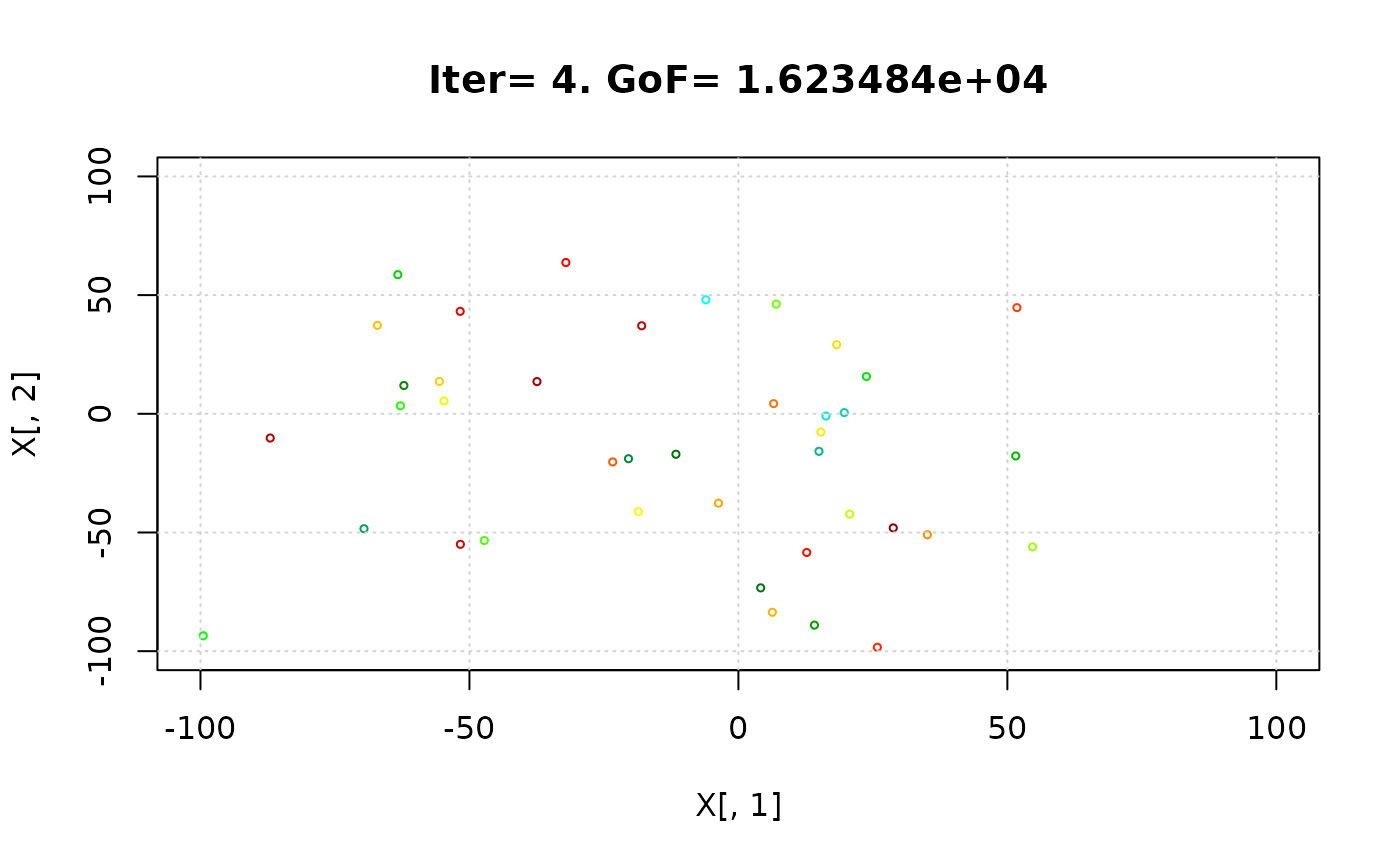

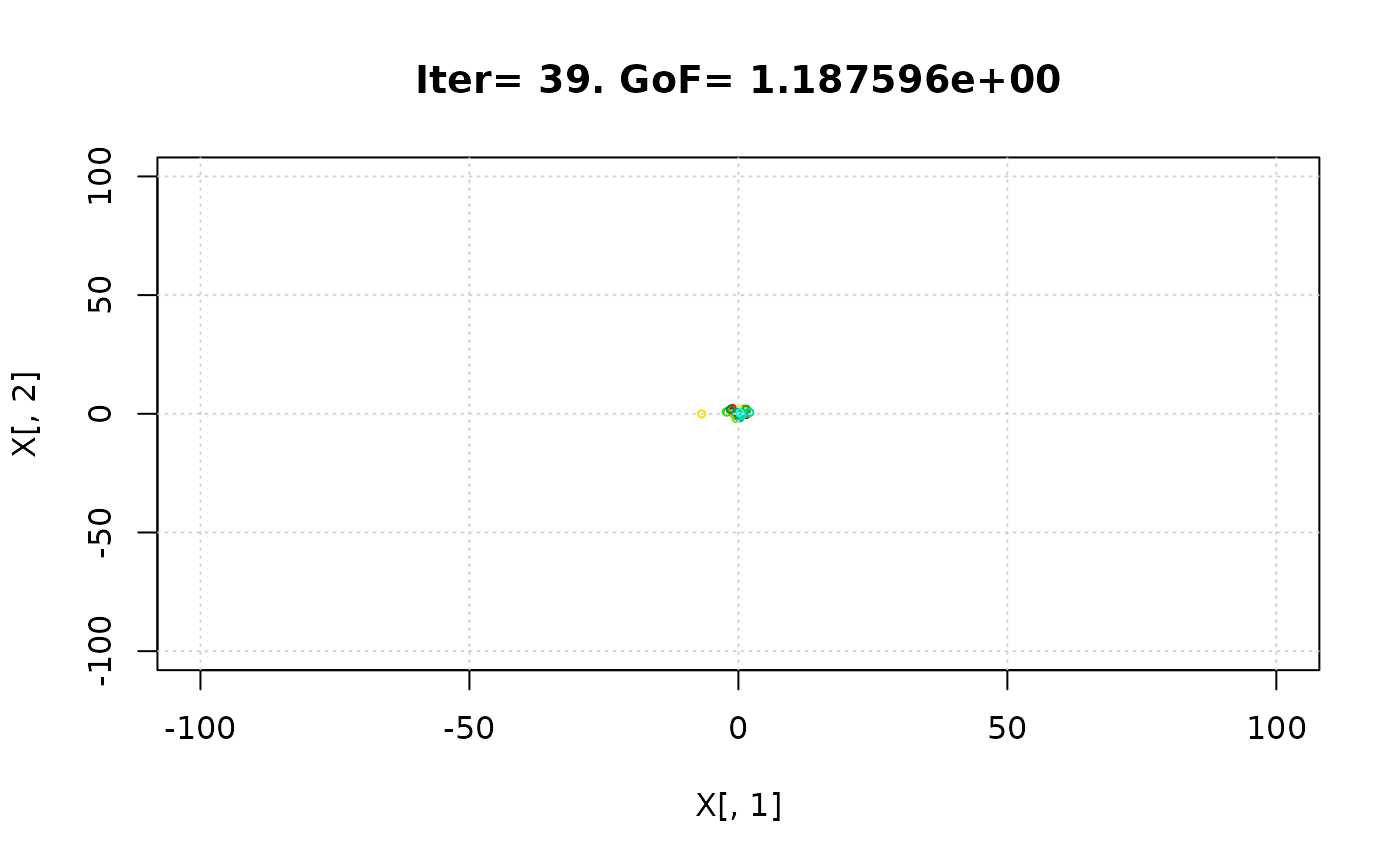

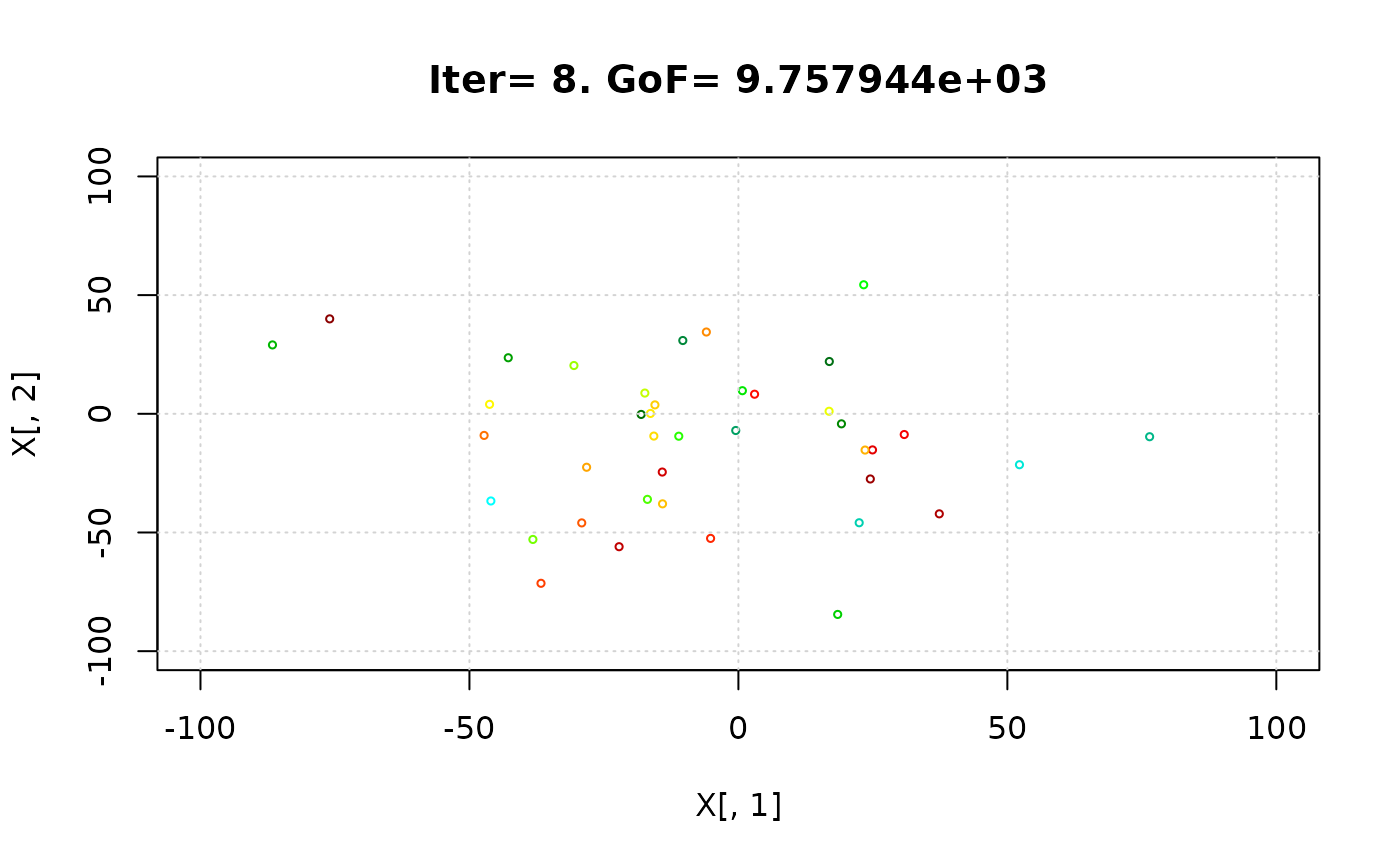

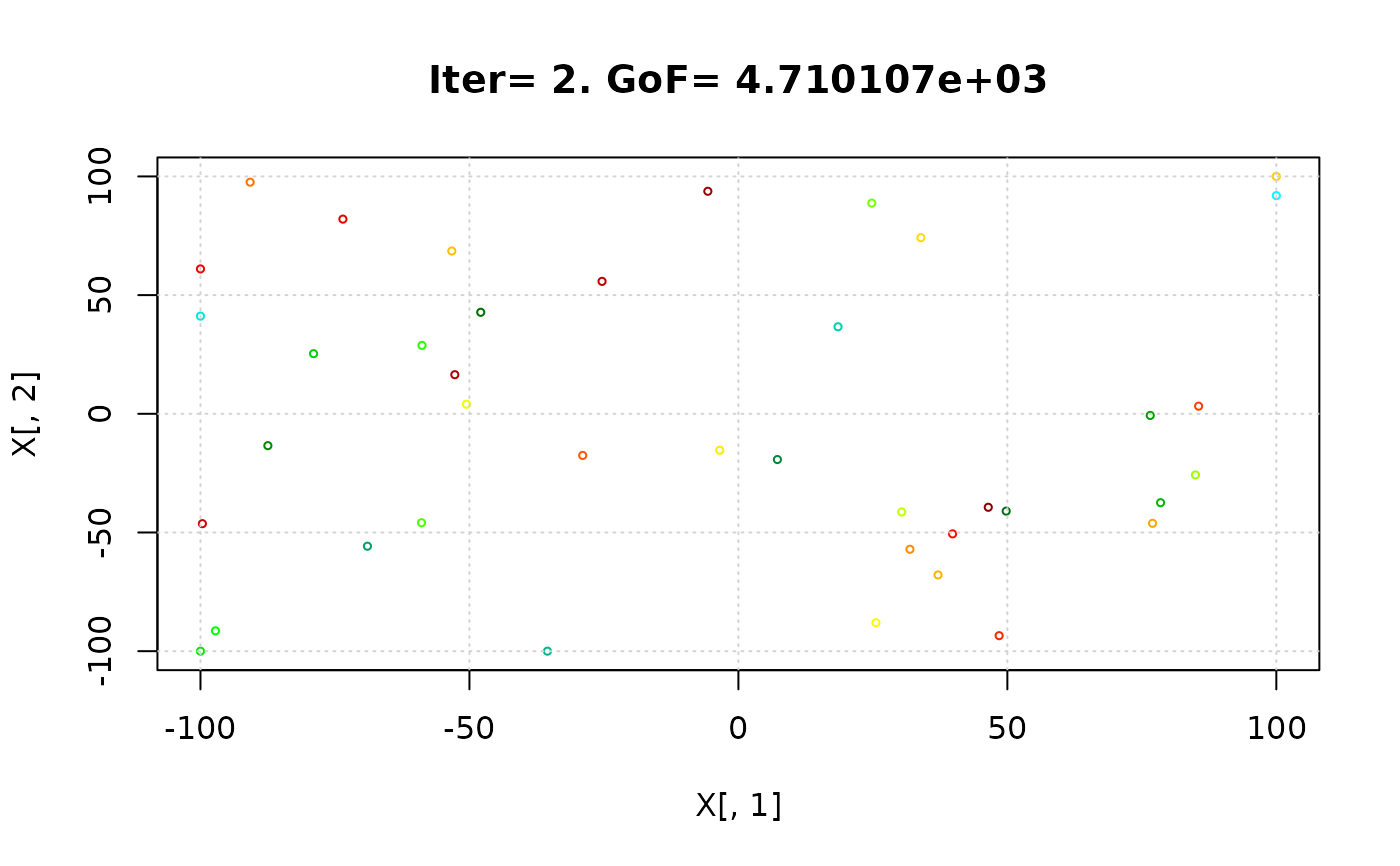

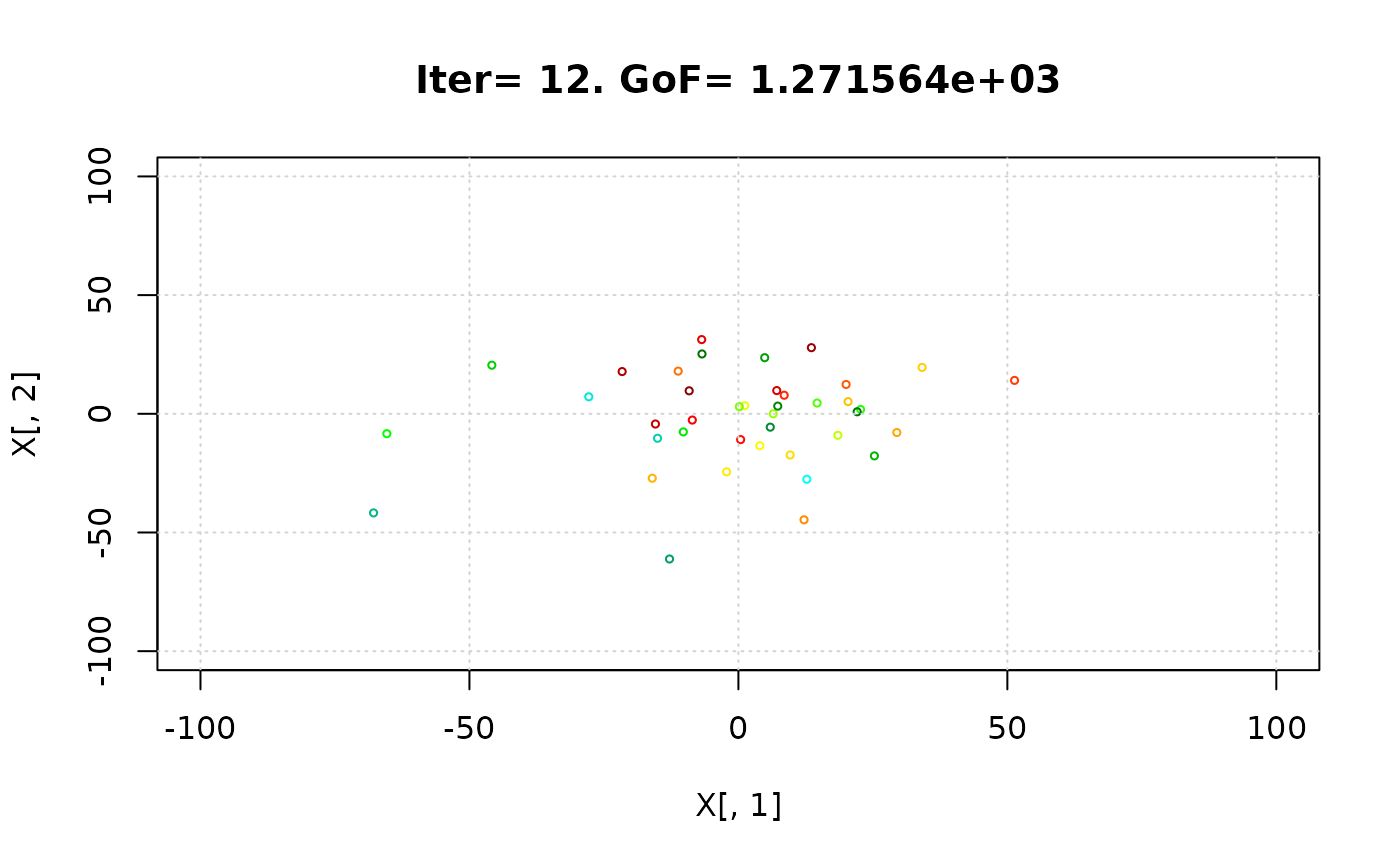

#> [                                Initialising  ...                             ]
#> ================================================================================
#>
#> [npart=40 ; maxit=100 ; method=spso2011 ; topology=random ; boundary.wall=absorbing2011]
#>
#> [ user-definitions in control: maxit=100 ; write2disk=TRUE ; plot=TRUE ]
#>
#>
#> ================================================================================
#> [ Writing the 'PSO_logfile.txt' file ...                                       ]
#> ================================================================================
#>
#> ================================================================================

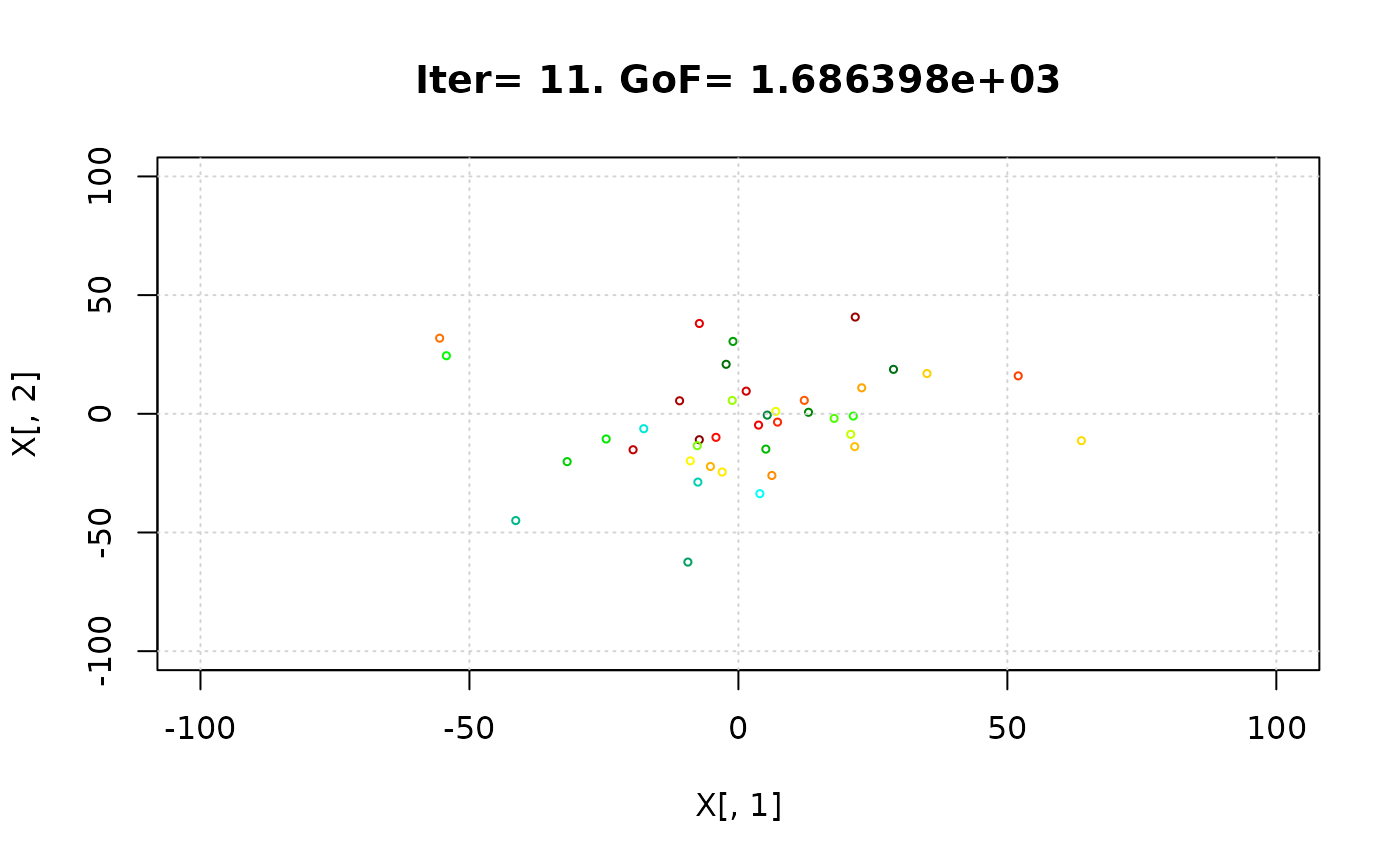

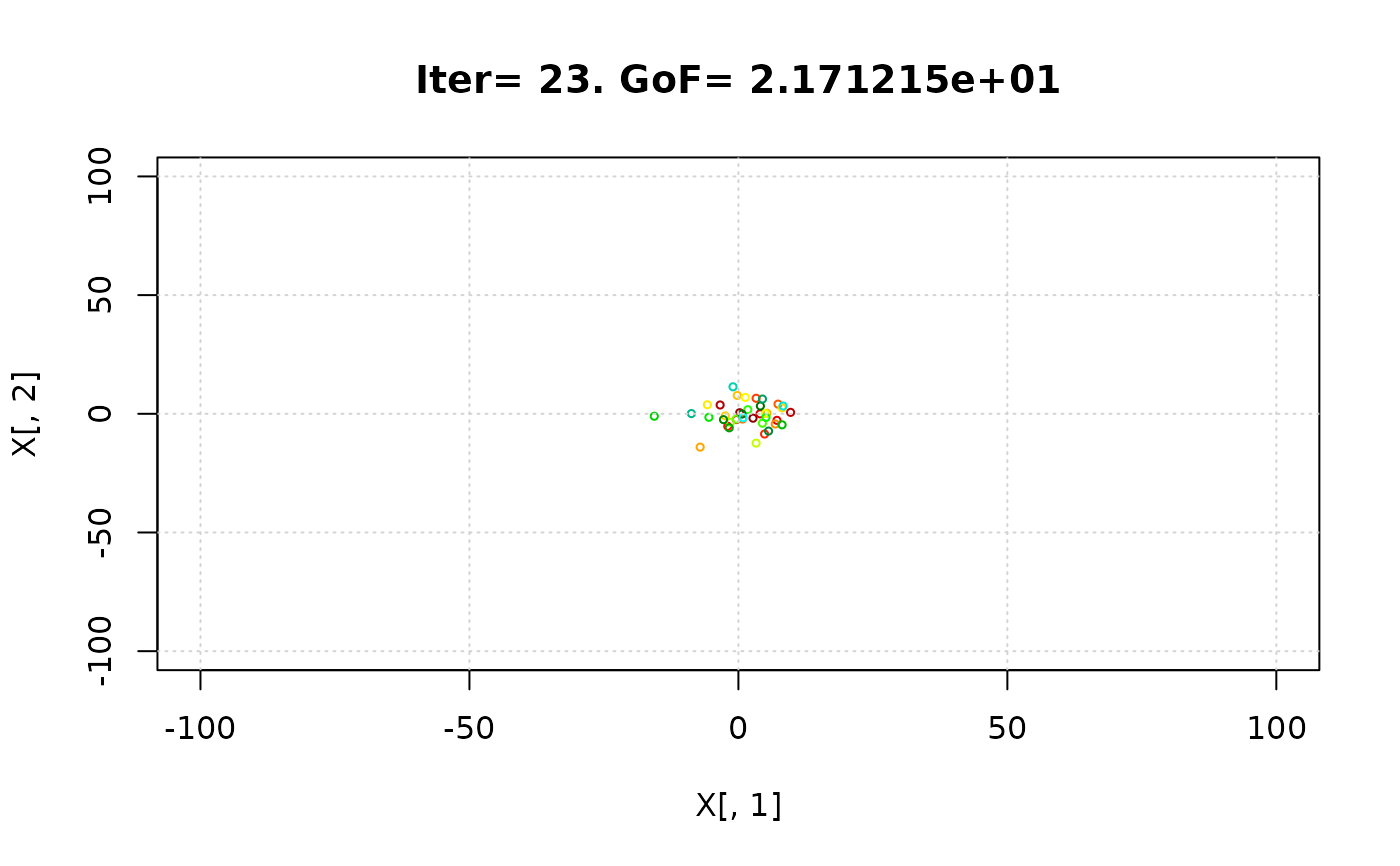

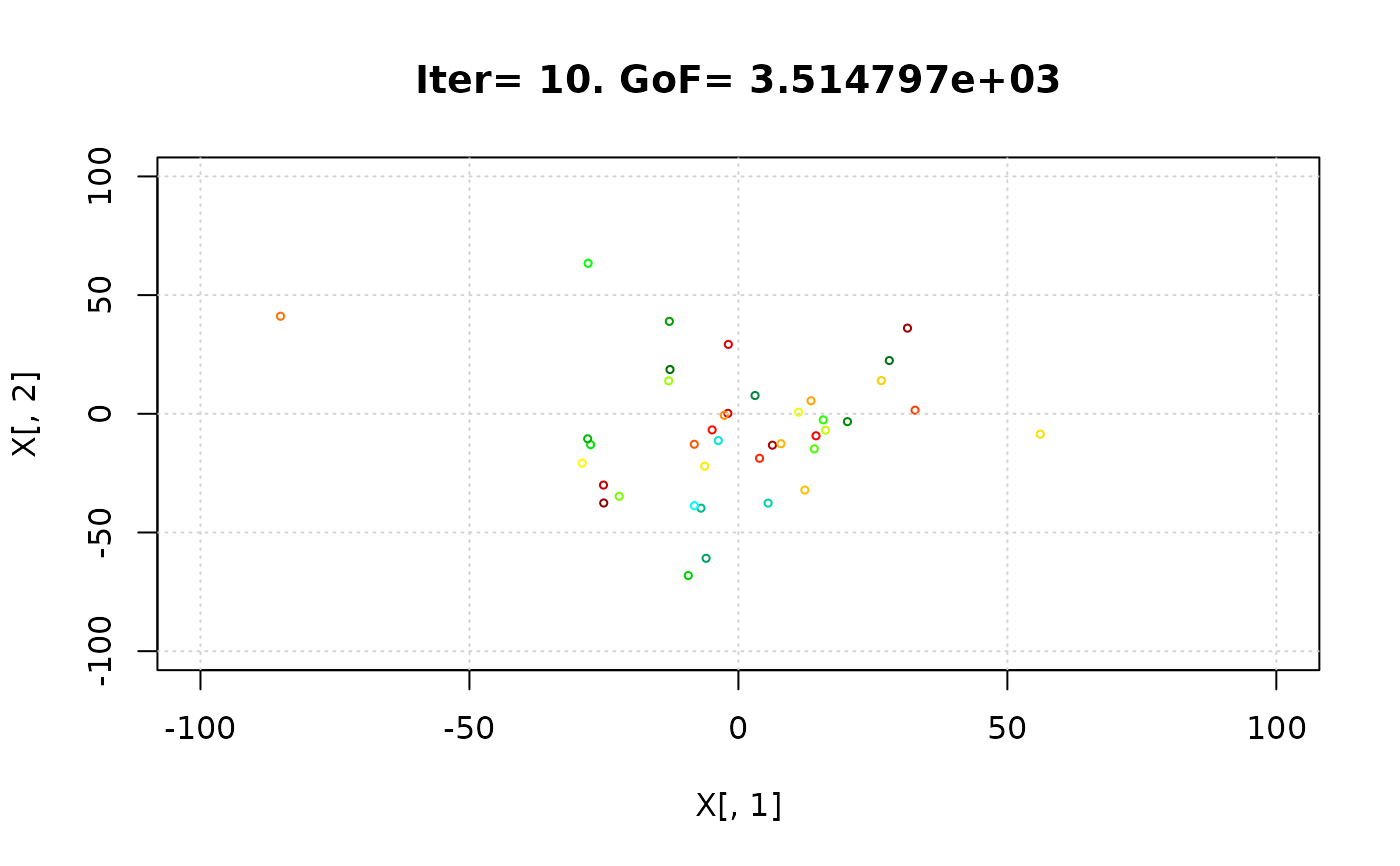

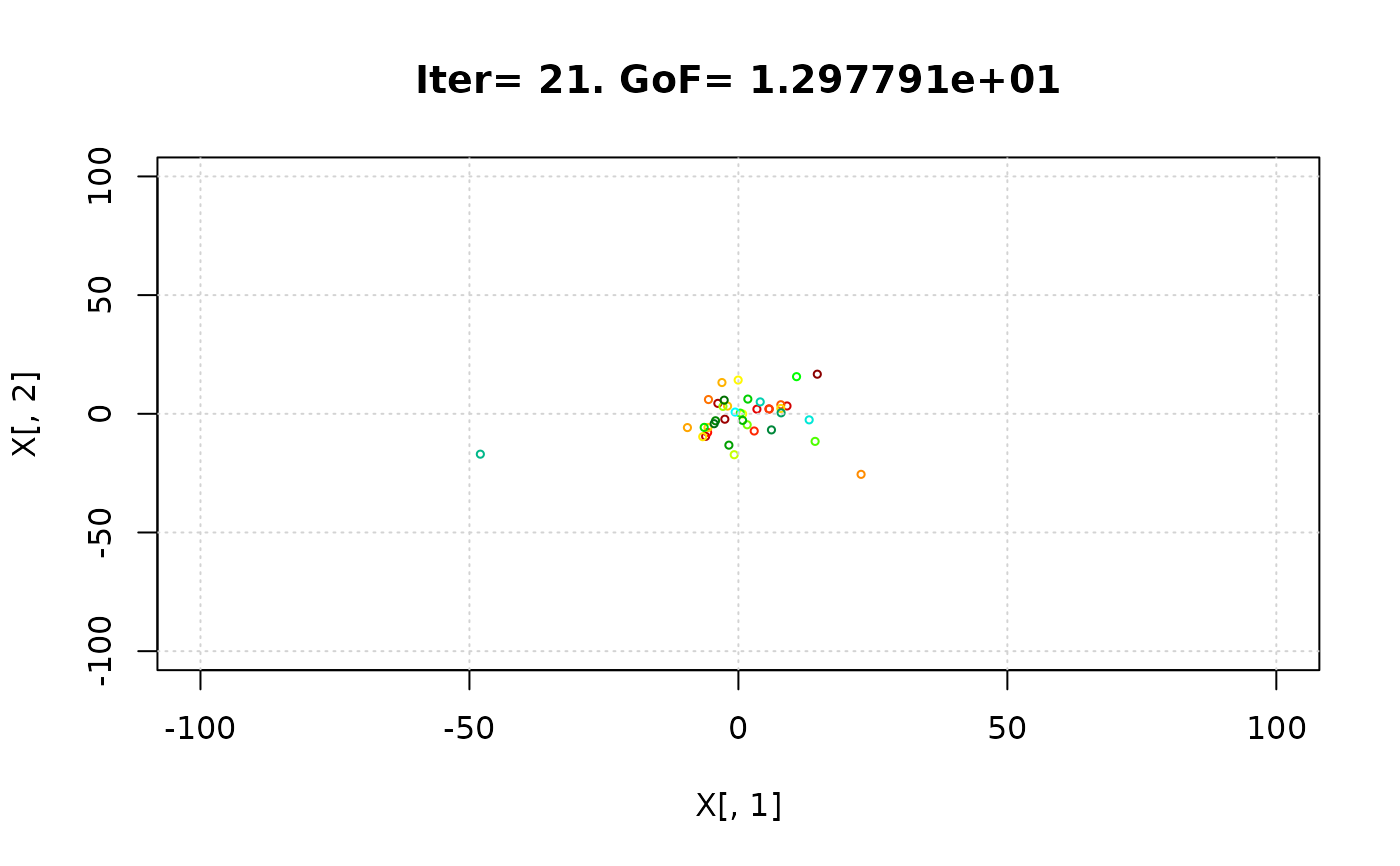

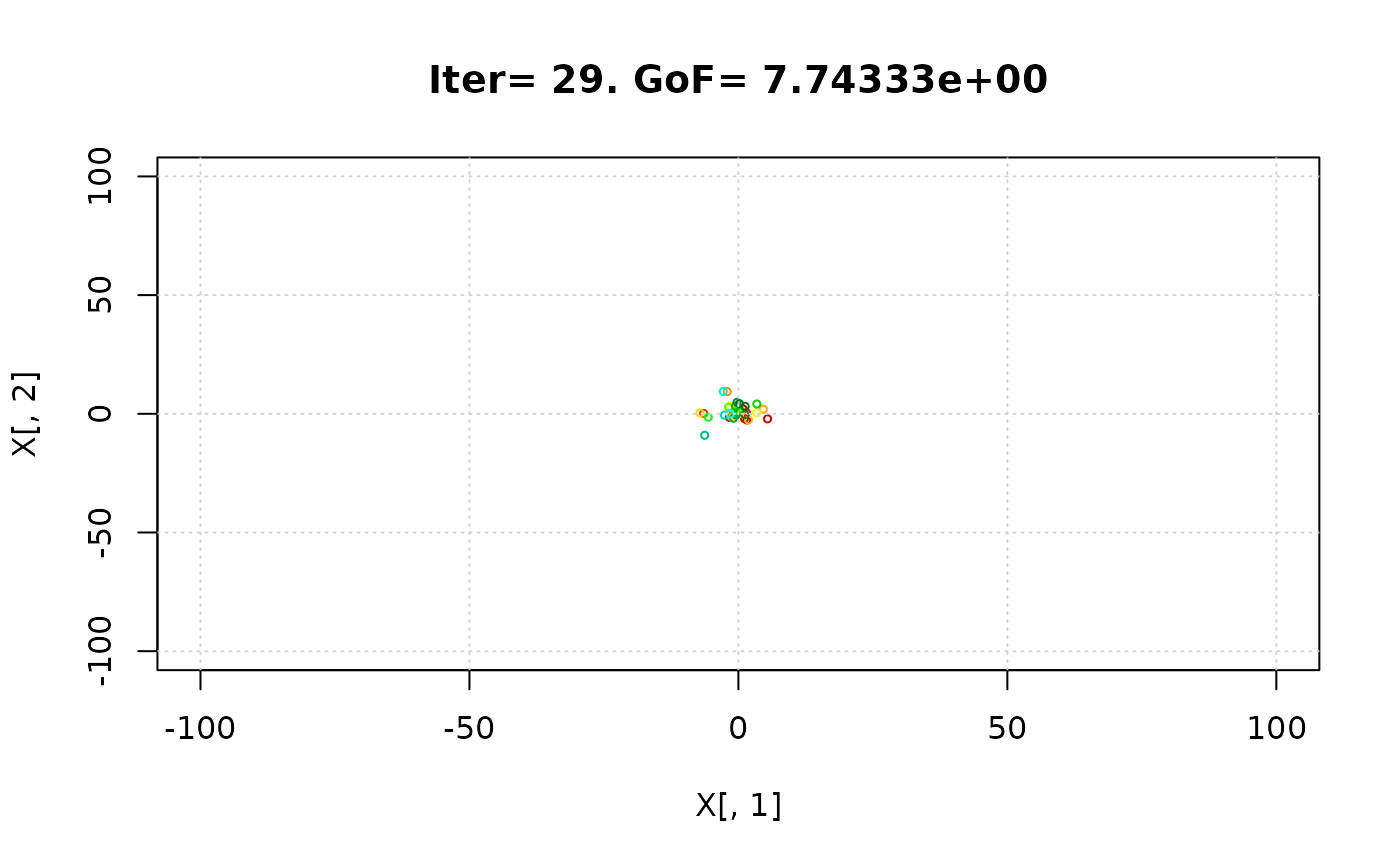

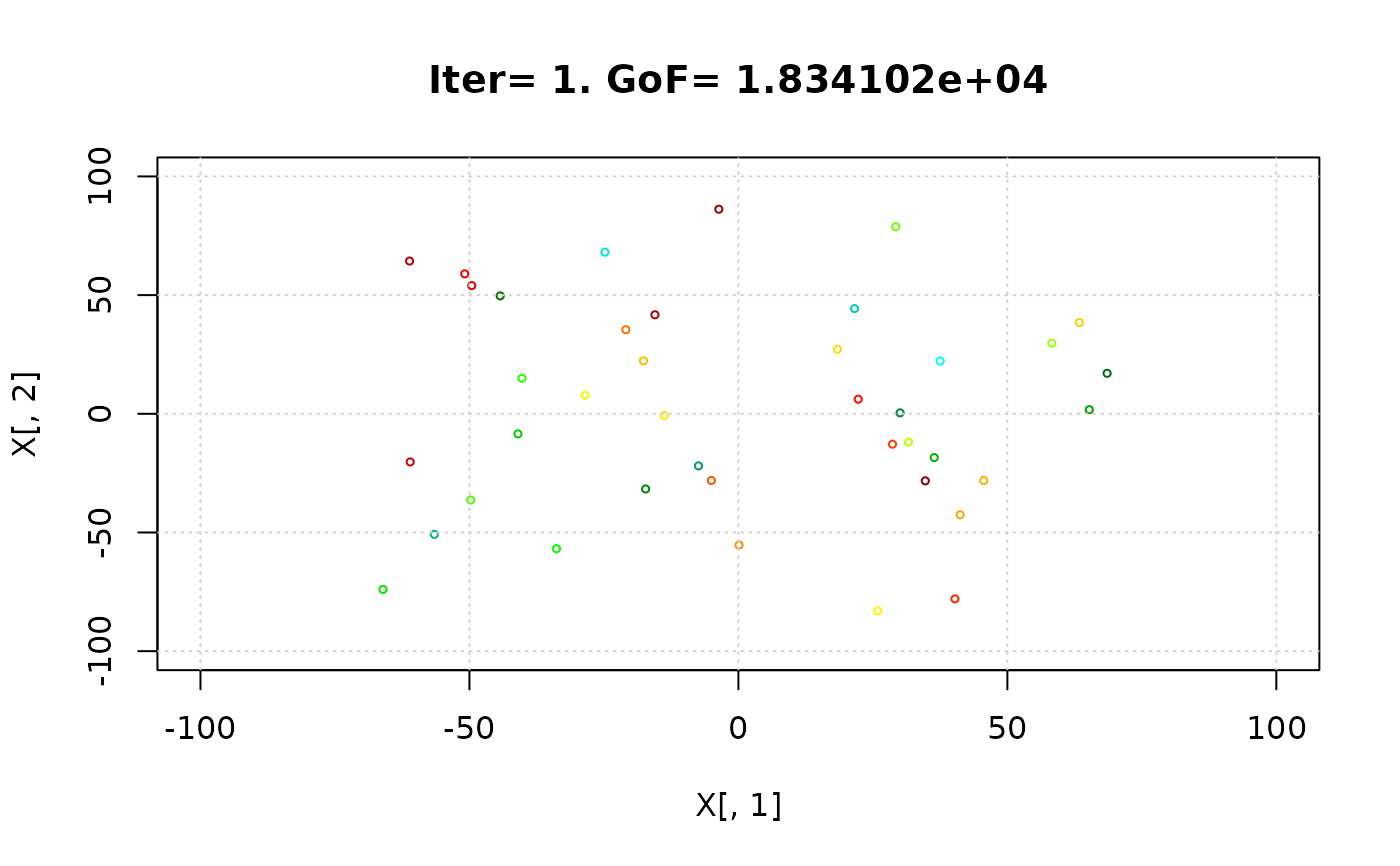

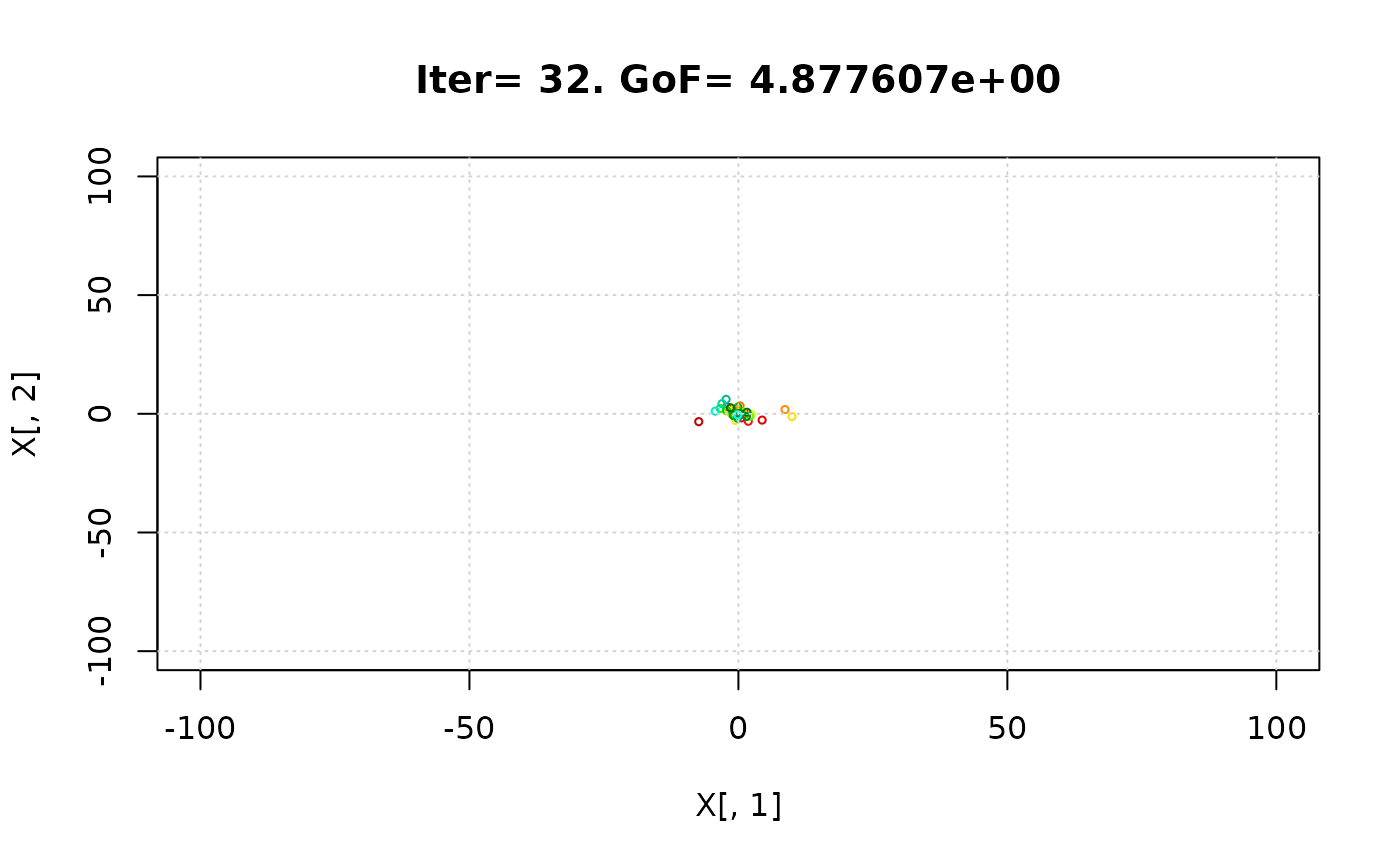

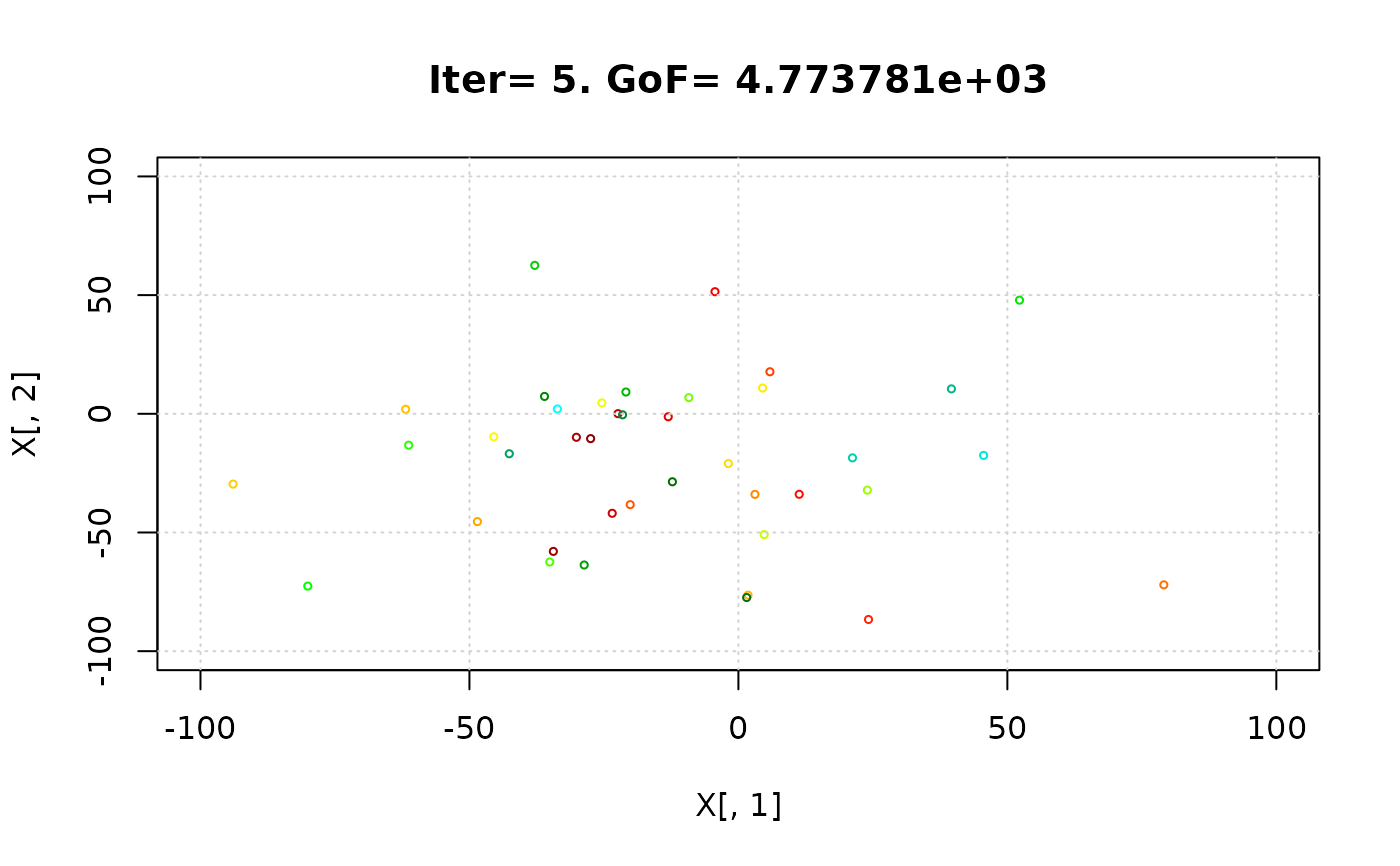

#> [                                 Running  PSO ...                             ]
#> ================================================================================
#>




































































































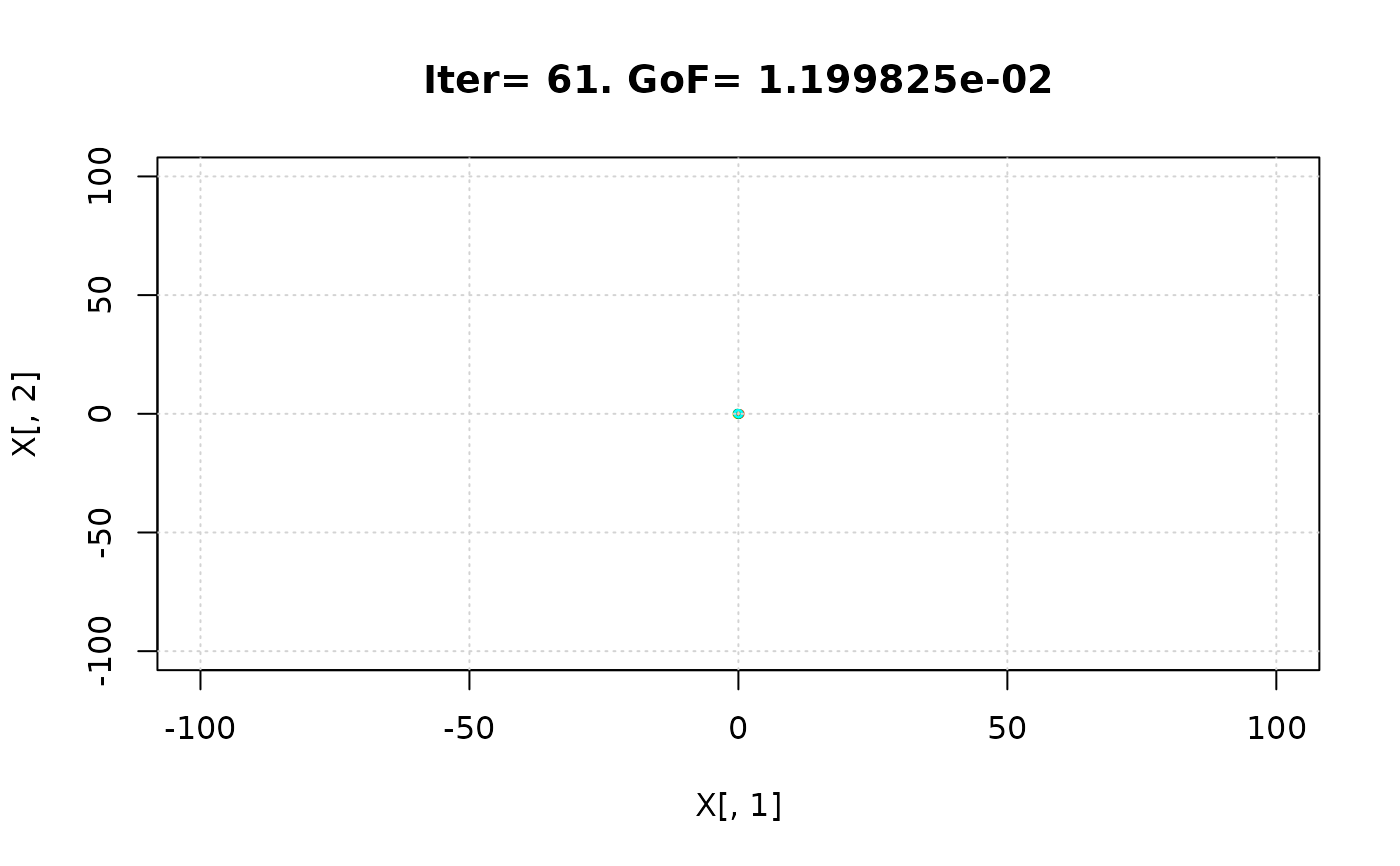

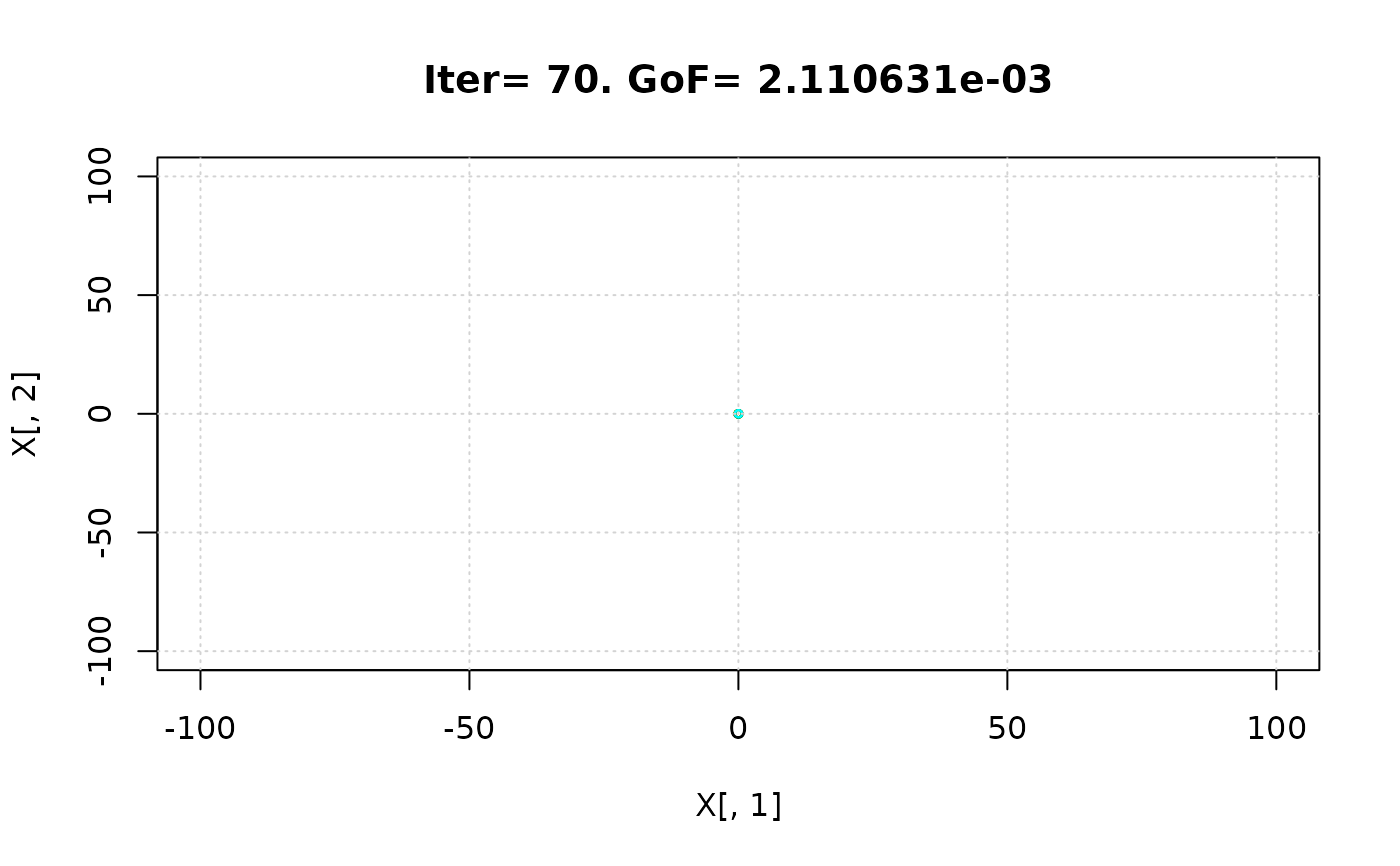

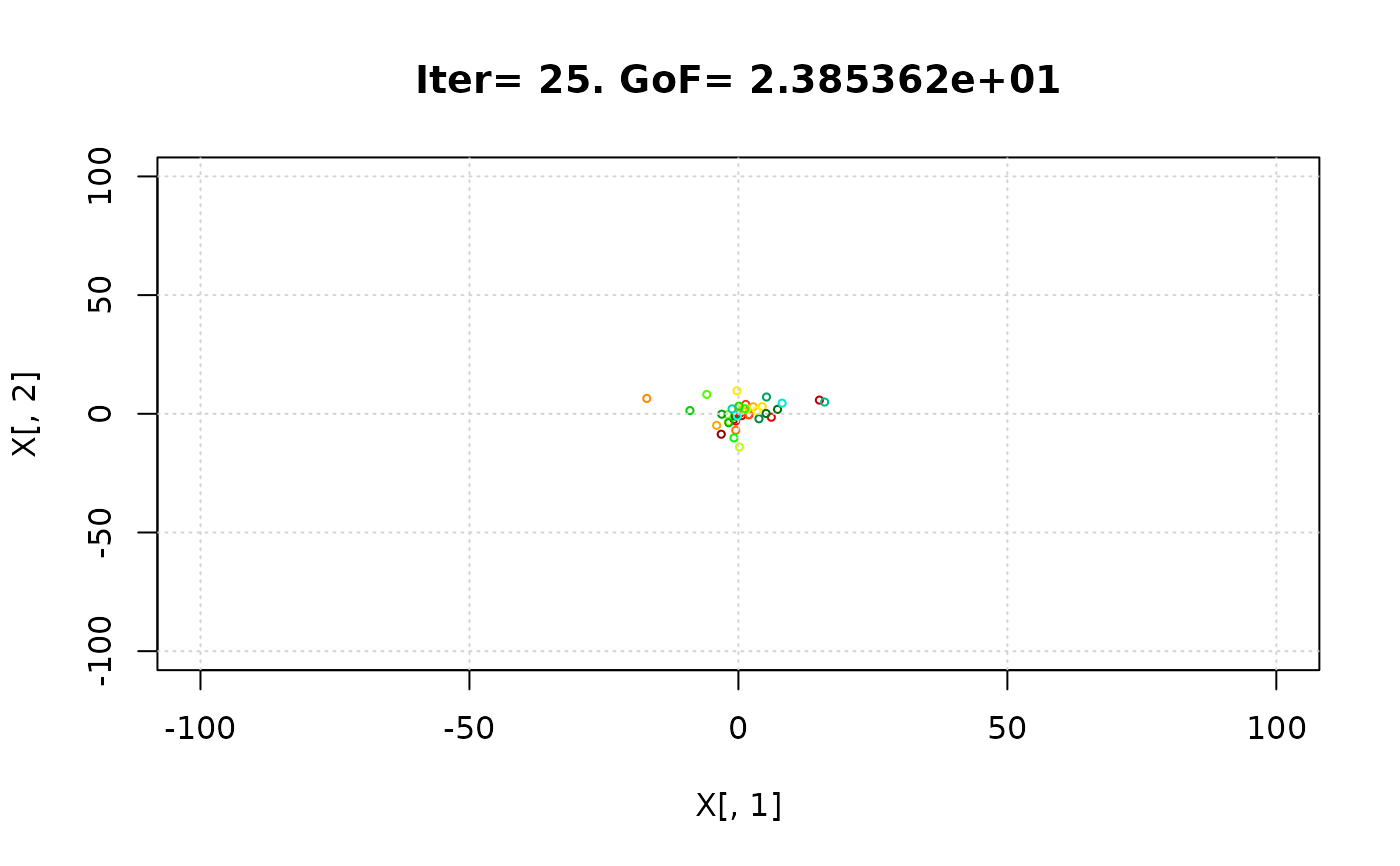

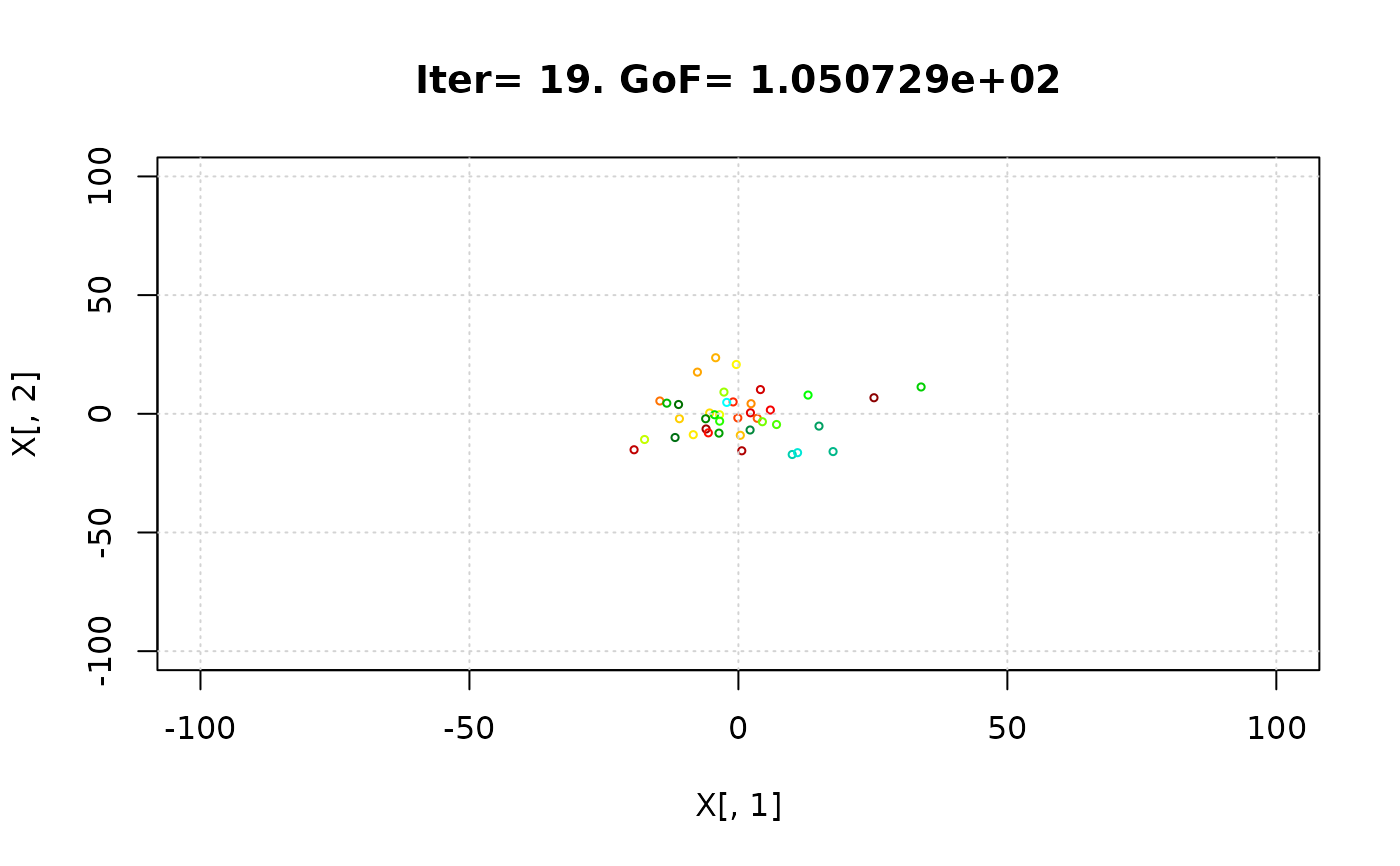

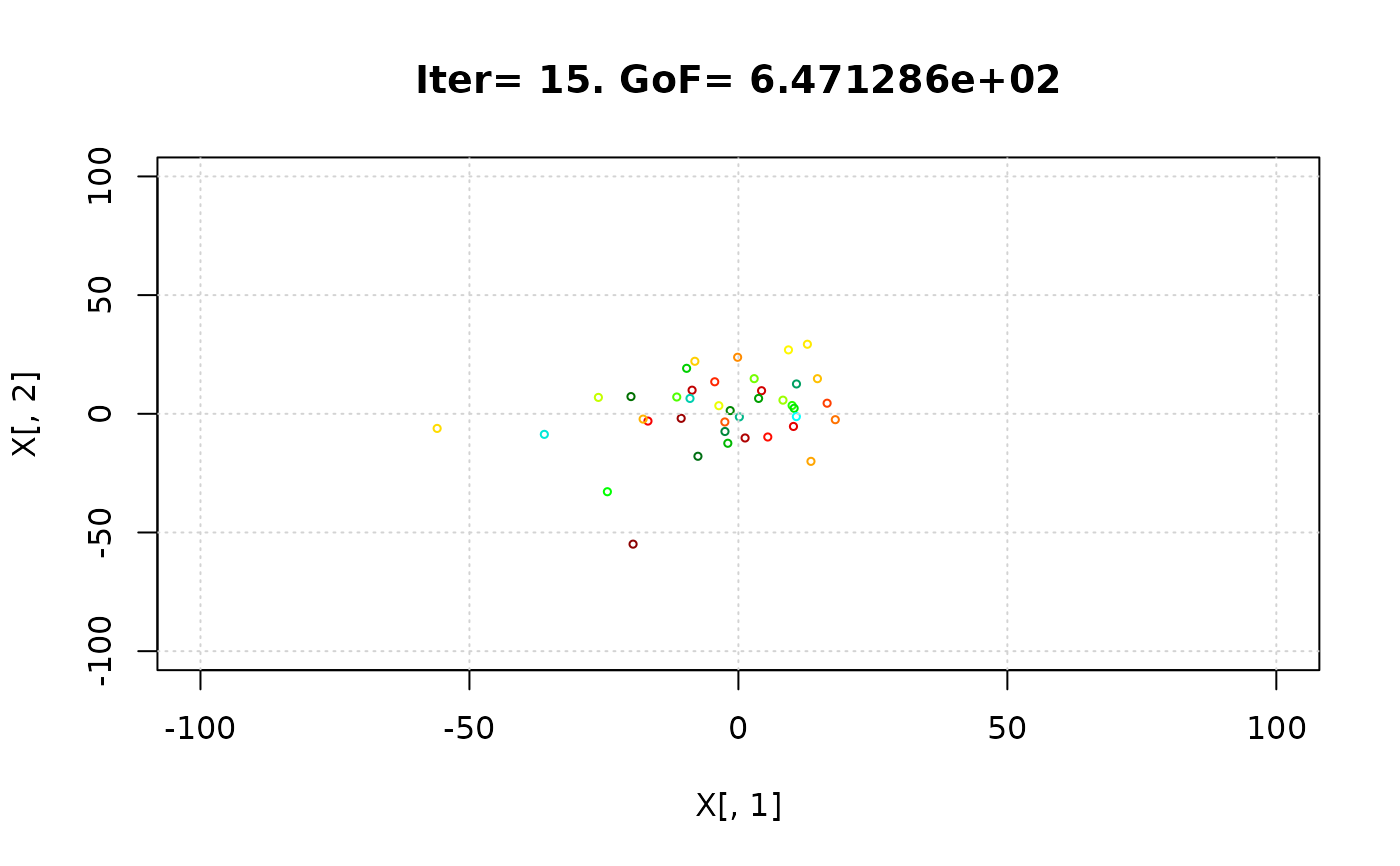

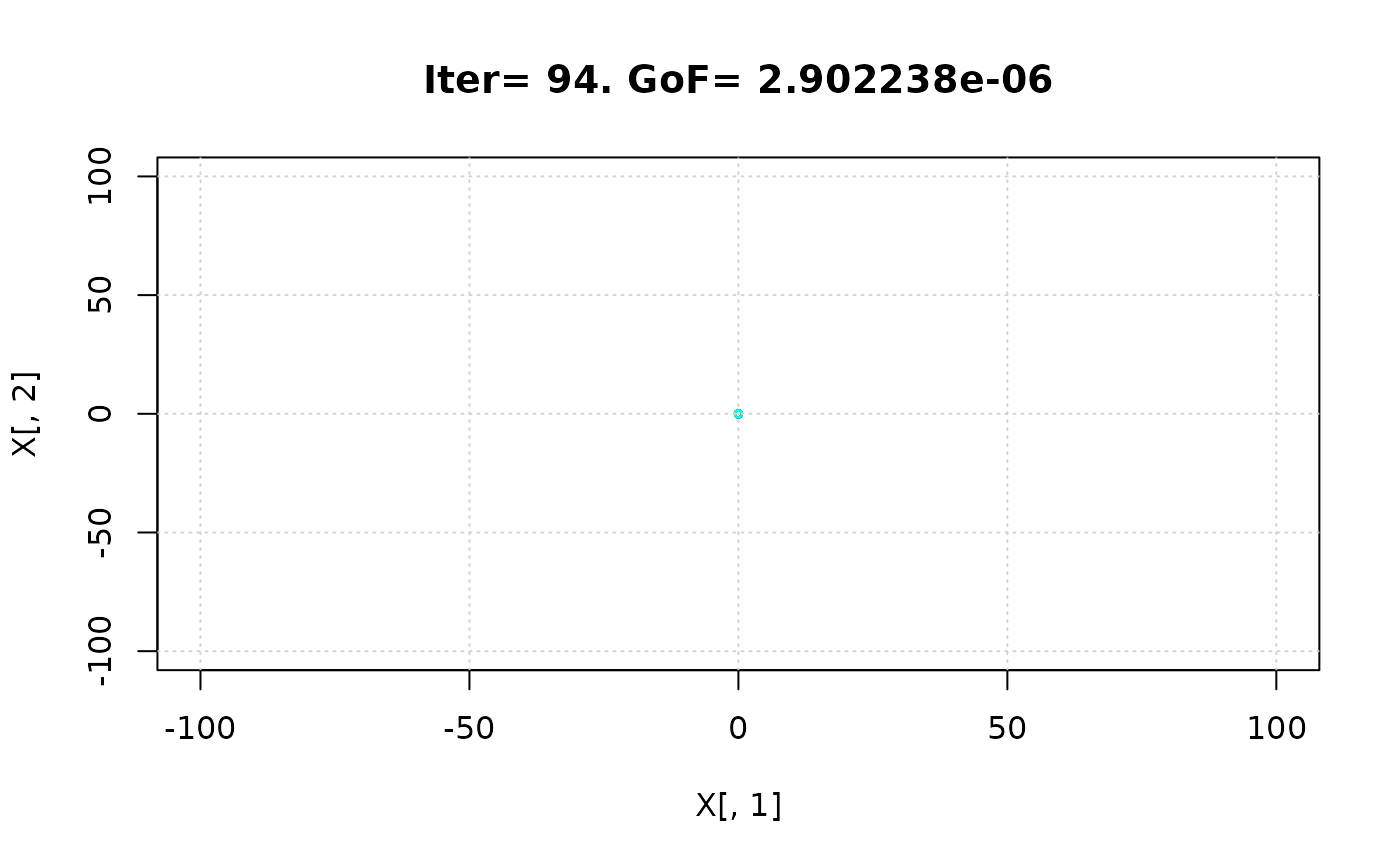

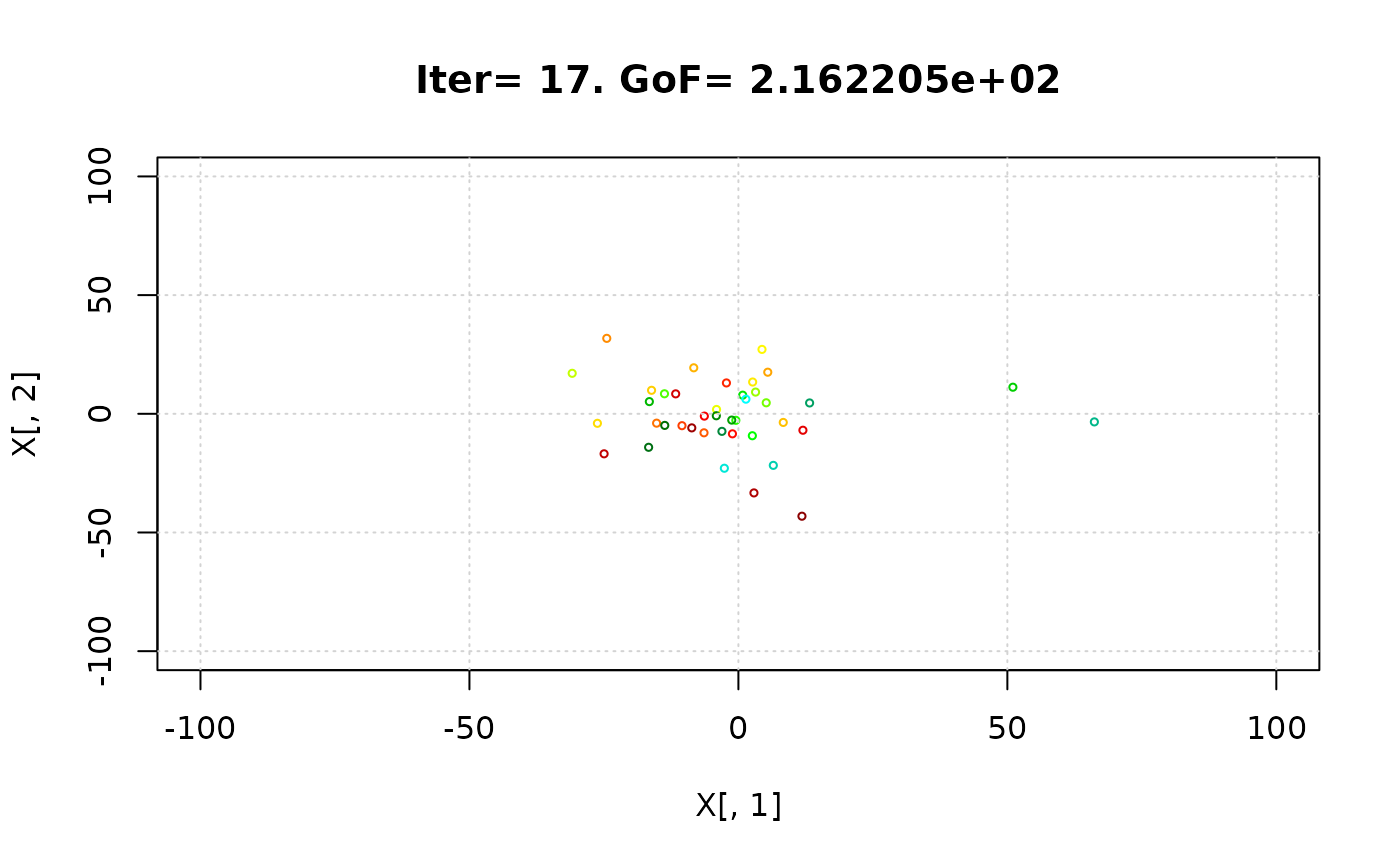

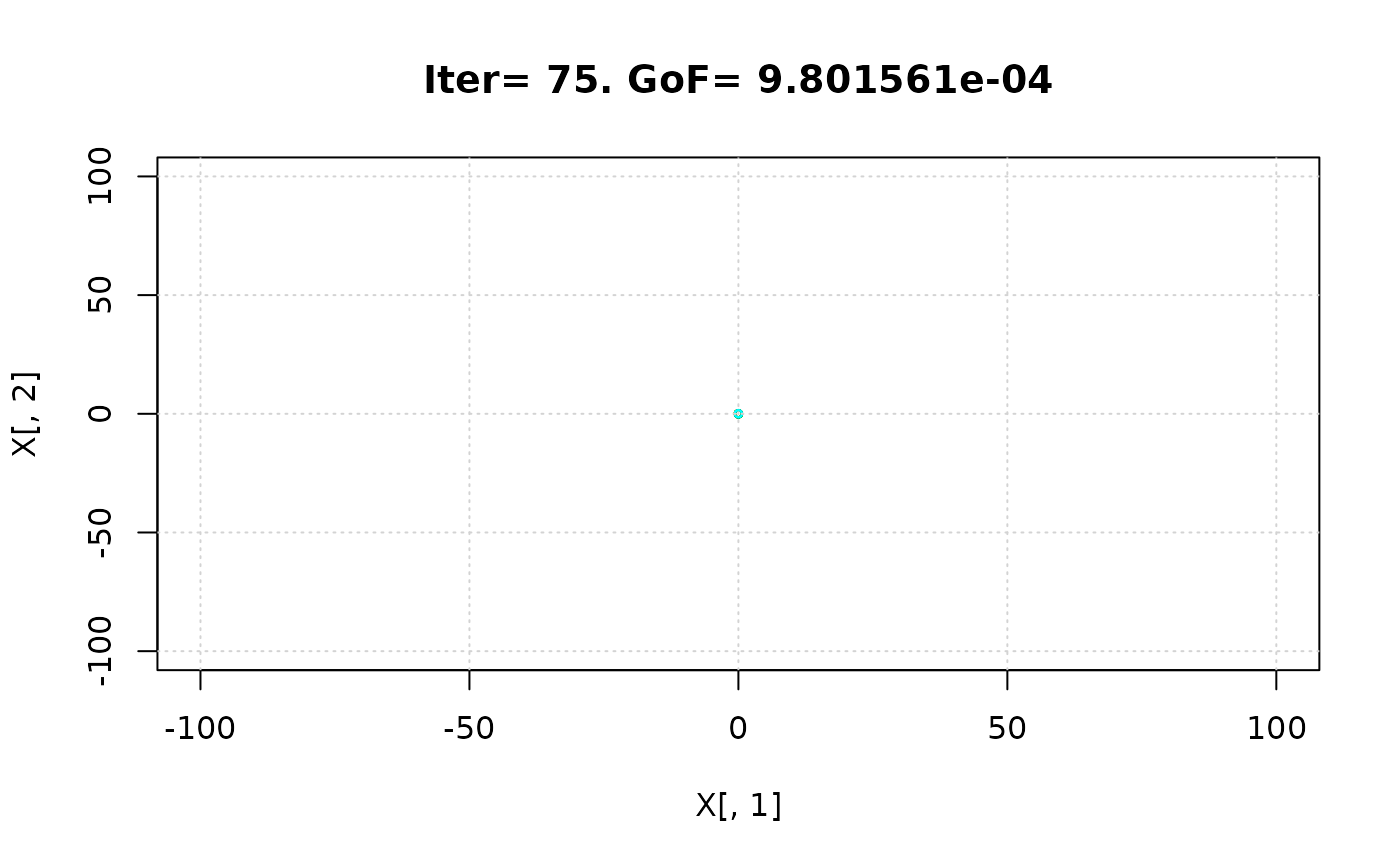

#> iter:100  Gbest: 6.143E-08  Gbest_rate: 66.13%  Iter_best_fit: 6.143E-08  nSwarm_Radius: 3.14E-06  |g-mean(p)|/mean(p): 98.08%
#>
#> [ Writing output files... ]
#>
#>                                     |
#> ================================================================================
#> [                          Creating the R output ...                           ]
#> ================================================================================
#>
#> [ Reading the file 'Particles.txt' ... ]
#> [ Total number of parameter sets: 4000 ]
#>
#> [ Plotting dotty plots for parameter values' ... ]

#> [ Plotting histograms for parameter values' ... ]
#> [ Plotting boxplots for parameter values' ... ]
#> [ Plotting empirical CDFs for parameter values' ... ]
#> [ Plotting parameter values vs Number of Model Evaluations' ... ]
#> [ Plotting 3D dotty plots for parameter values' ... ]
#>
#> [ Reading the file 'Particles.txt' ... ]
#> [ Total number of parameter sets: 4000 ]
#> [ Number of behavioural parameter sets: 3442 ]
#>
#> [ Plotting dotty plots for parameter values' ... ]
#> [ Plotting histograms for parameter values' ... ]
#> [ Plotting boxplots for parameter values' ... ]
#> [ Plotting empirical CDFs for parameter values' ... ]
#> [ Plotting parameter values vs Number of Model Evaluations' ... ]
#> [ Plotting 3D dotty plots for parameter values' ... ]
# } # donttest END
